Instrument Cluster

Fault code 1299

Gateway control unit

Diagnostic conditions
- Ignition on
- Internal function test on instrument cluster

Possible causes of fault
- No signal/communication (no signal from gateway control unit on CAN drive)
- Faulty

Affected pins
Instrument cluster, connector B:
- Pin 4 'CAN drive (high)'
- Pin 16 'CAN drive (low)'

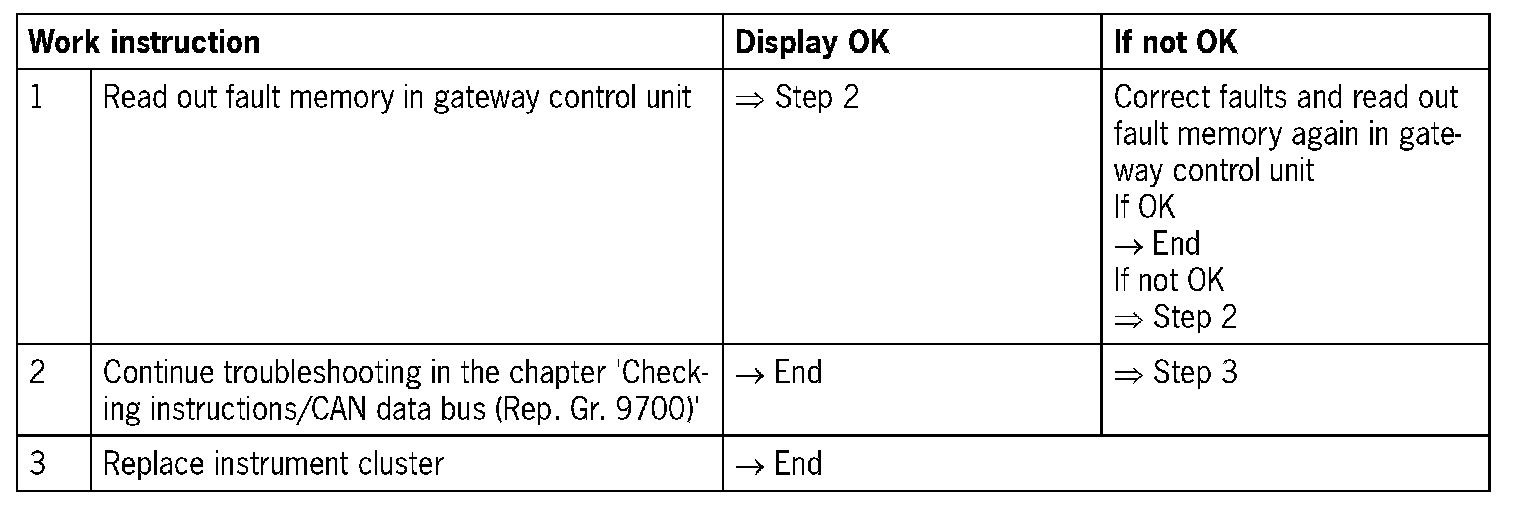

Diagnosis/troubleshooting
