Magnetic Field Sensor

Fault code 1305

CAN Infotainment

Diagnostic conditions
- Ignition on
- Magnetic field sensor (compass control module) internal function test

Possible causes of fault
- No signal/communication (no signals on CAN Infotainment)
- Faulty (CAN Infotainment wires faulty)

Affected pins
Plug of magnetic field sensor (compass control module)
- Pin 3 'CAN Infotainment (low)'
- Pin 5 'CAN Infotainment (high)'

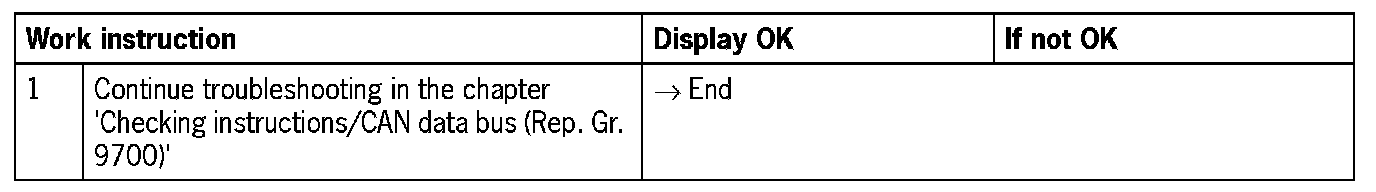

Diagnosis/troubleshooting
