Instrument Cluster

Fault code 1312

CAN drive

Diagnostic conditions
- Ignition on
- Internal function test on instrument cluster and gateway

Possible causes of fault
- Faulty (CAN drive wire faulty)

Affected pins
Instrument cluster, plug B:
- Pin 19 'CAN drive (high)'
- Pin 20 'CAN drive (low)'

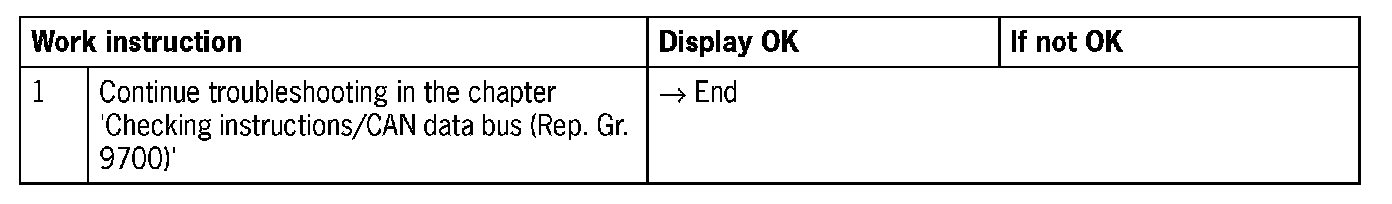

Diagnosis/troubleshooting
