Steering Column Switch

Fault code 1317

Instrument cluster

Diagnostic conditions
- Ignition on
- Internal function test of steering column switch (with electronic unit)

Possible cause of fault
- No signal from the instrument cluster (no signal/communication)

Affected pins
Steering column switch (with electronic unit), plug A:
- Pin 8 'CAN comfort (low)'
- Pin 9 'CAN comfort (high)'
- Pin 10 'CAN drive (low)'
- Pin 11 'CAN drive (high)'

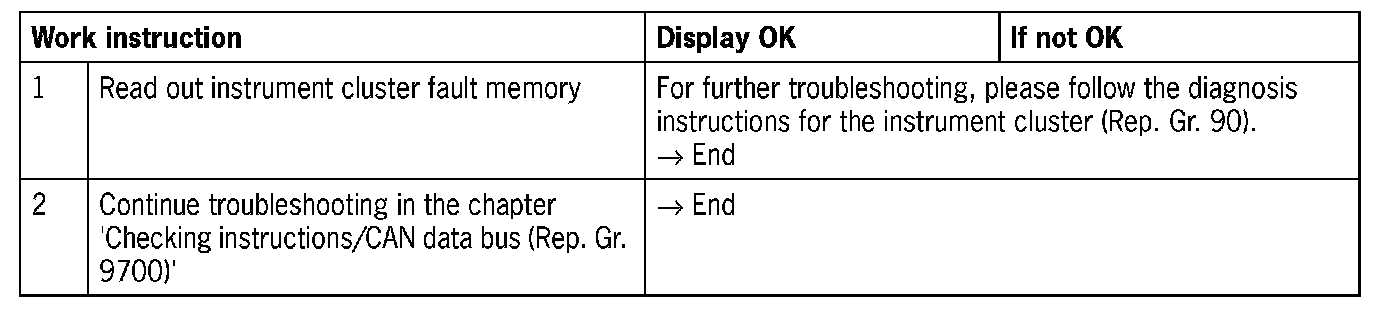

Diagnosis/troubleshooting
