Gateway

Fault code 1327

ParkAssist control module

Diagnostic conditions
- Ignition on
- Internal gateway function test

Possible causes of fault
- No signal/communication (no signal from ParkAssist control module on CAN comfort)

Affected pins
Instrument cluster, plug B:
- Pin 27 'CAN comfort (high)'
- Pin 28 'CAN comfort (low)'

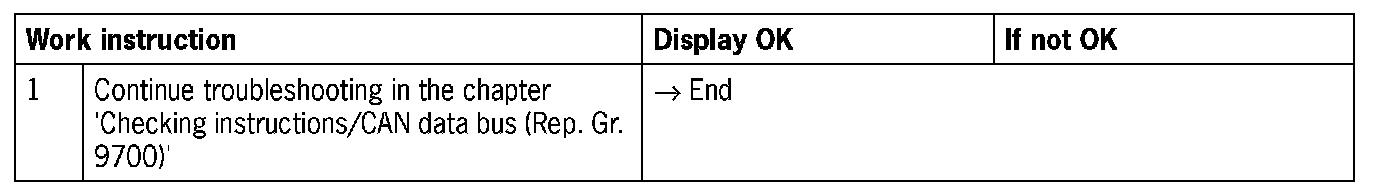

Diagnosis/troubleshooting
