Panorama Roof System

Fault code 1330

Rear convenience system control unit

Diagnostic conditions
- Ignition on
- Panorama roof system (PDS) control unit, internal function test

Possible cause of fault
- No signal/communication

Affected pins
Panorama roof system (PDS) control unit plug A 'supply voltage and CAN':
Pin 5 'CAN high'
Pin 10 'CAN low'

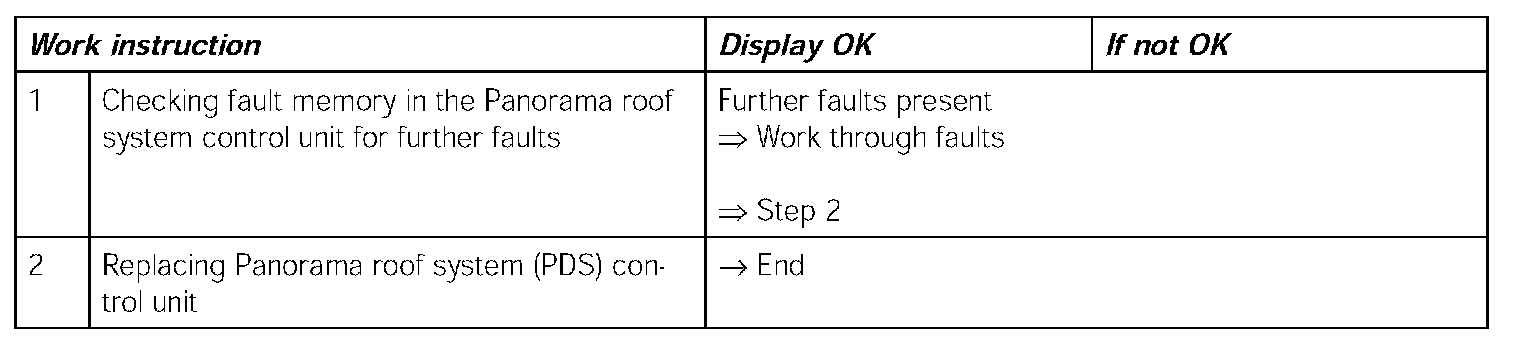

Diagnosis/troubleshooting
