Vehicle Electrical System (BNSG)

Fault code 1332

Passenger's door control module

Diagnostic conditions
- Ignition on
- Internal control module function test

Possible causes of fault
- 'Passenger door control module' Read out fault memory to locate faults.
- 'No signal/communication' No message from passenger door control module on CAN comfort.

Affected pins
Plug 'A' on vehicle electrical system control module:
- Pin 1 'CAN comfort (high)'
- Pin 2 'CAN comfort (low)'

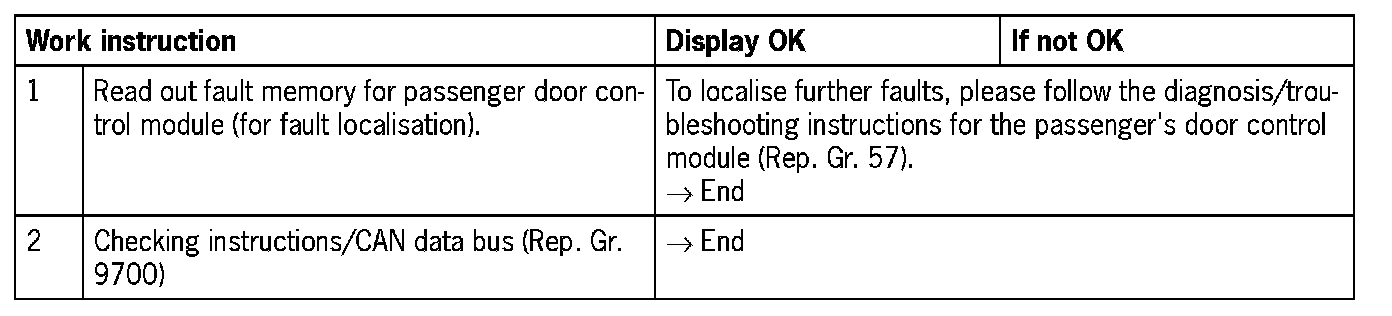

Diagnosis/troubleshooting

NOTE: If there is no incoming signal/message via CAN comfort using several control modules, CAN comfort must be checked for open or short circuits. Refer to 'Checking instructions/CAN data bus'.
