Vehicle Electrical System (BNSG)
Fault code 1334Rear right door control module
Diagnostic conditions
- Ignition on
- Internal control module function test
Possible causes of fault
- 'Rear right door control module' Read out fault memory to locate faults.
- 'No signal/communication' No message from rear right door control module on CAN comfort.
Affected pins
Plug 'A' on vehicle electrical system control module:
- Pin 1 'CAN comfort (high)'
- Pin 2 'CAN comfort (low)'

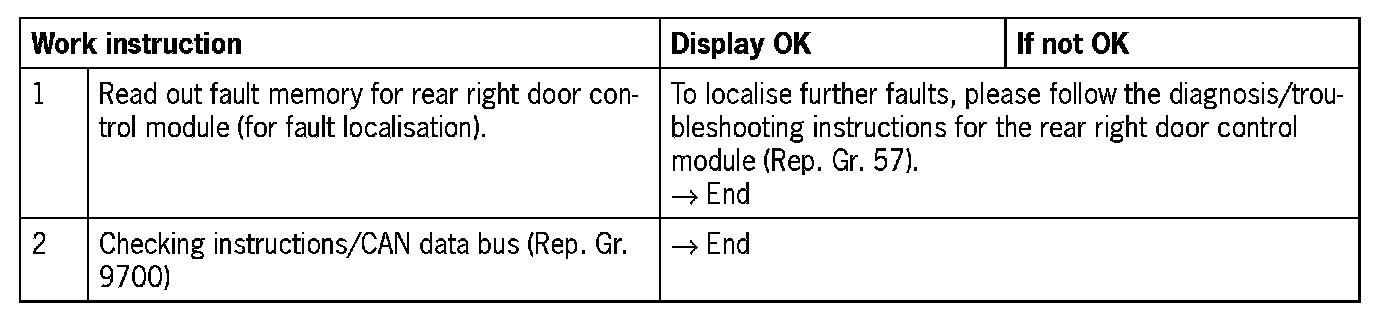

Diagnosis/troubleshooting
NOTE: If there is no incoming signal/message via CAN comfort using several control modules, CAN comfort must be checked for open or short circuits. Refer to 'Checking instructions/CAN data bus'.
