Instrument Cluster
Fault code 1335Memory seat adjustment, driver's
Diagnostic conditions
- Ignition on
- Internal gateway function test
Possible causes of fault
- No signal/communication (no signal from driver's memory seat adjustment control module on CAN comfort)
Affected pins
Instrument cluster, plug B:
- Pin 27 'CAN comfort (high)'
- Pin 28 'CAN comfort (low)'

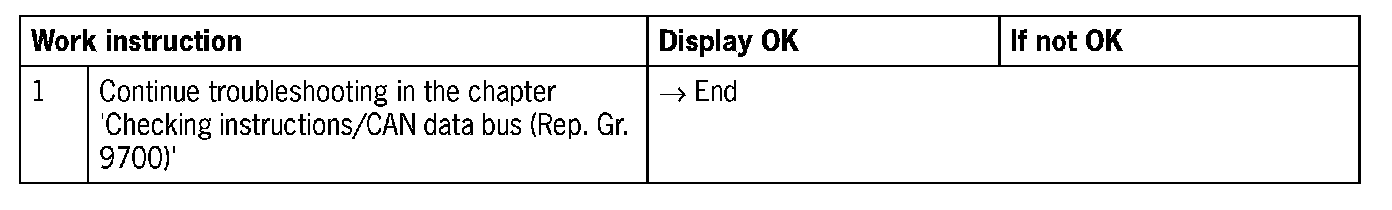

Diagnosis/troubleshooting
NOTE: If there is no incoming signal via CAN comfort using several control modules, CAN comfort must be checked for open or short circuits. Refer to 'Checking instructions/CAN data bus (Rep. Gr. 9700)'.
