Steering Column Switch
Fault code 1335Memory seat adjustment control module, driver's
Diagnostic conditions
- Ignition on
- Internal function test of steering column switch (with electronic unit)
Possible cause of fault
- No activation of the steering wheel heater (no signal/communication from the driver's memory seat adjustment control module)
Affected pins
Steering column switch (with electronic unit), plug A:
- Pin 8 'CAN comfort (low)'
- Pin 9 'CAN comfort (high)'

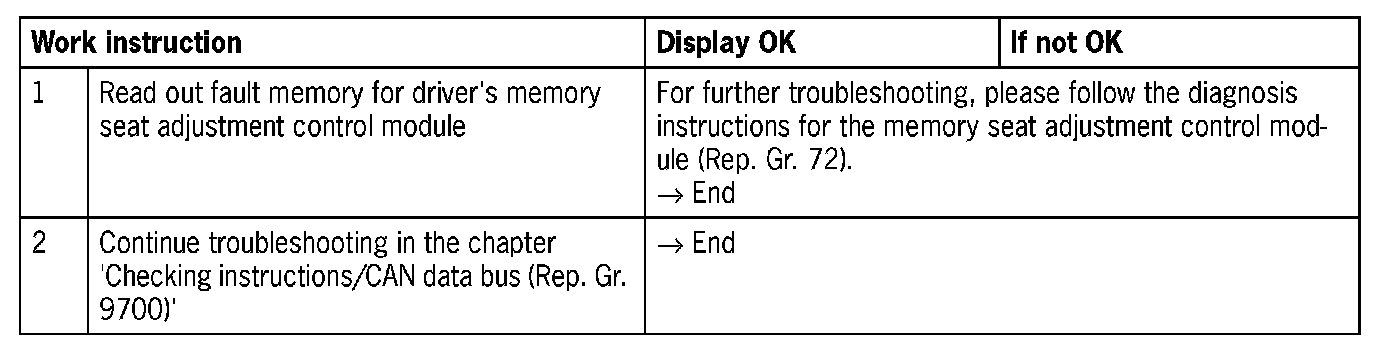

Diagnosis/troubleshooting
