Parkassist

Fault code 1336

CAN comfort OFF

Diagnostic conditions
- ParkAssist control unit internal function test
- Ignition on

Possible cause of fault
- Short circuit between CAN lead (high) and CAN lead (low)
- Short circuit to B+
- Short circuit to ground
- Fault in a control unit connected to CAN comfort

Affected pins
Plug A for ParkAssist control unit:
- Pin 3 'CAN comfort (low)'
- Pin 2 'CAN comfort (high)'

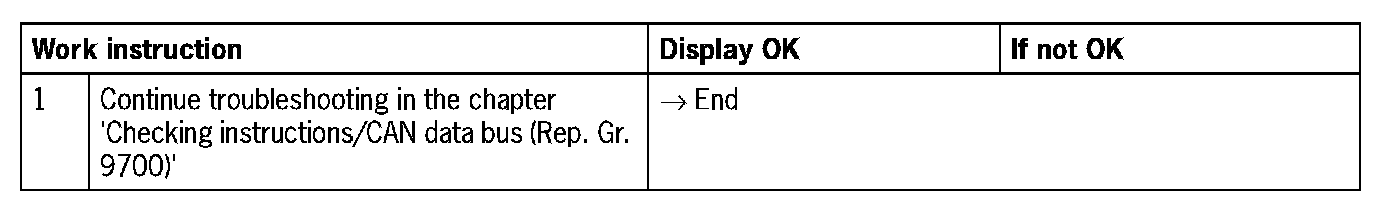

Diagnosis/troubleshooting
