Vehicle Electrical System (BNSG)

Fault code 1336

CAN comfort OFF

Diagnostic conditions
- Ignition on
- Internal control module function test

Possible causes of fault
- 'No signal/communication' Malfunction of networked components.
- 'Malfunction of networked components'.

Affected pins
Plug 'A' on vehicle electrical system control module:
- Pin 1 'CAN comfort (high)'
- Pin 2 'CAN comfort (low)'

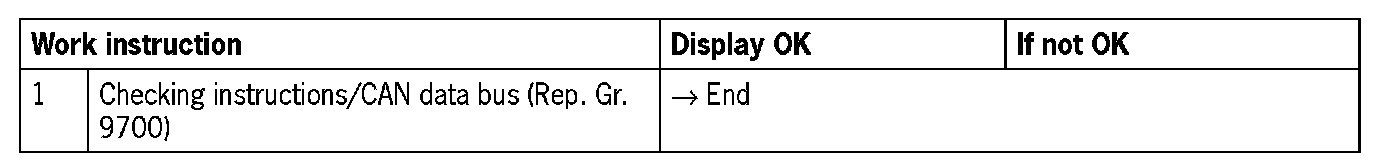

Diagnosis/troubleshooting
