Level Adjustment

Fault code 1400

Control position not adjustable

Diagnostic conditions
- Ignition on
- Internal level control module function test

Possible cause of fault
- Control position not adjustable, vehicle too low or too high (no display)

Affected pins
-

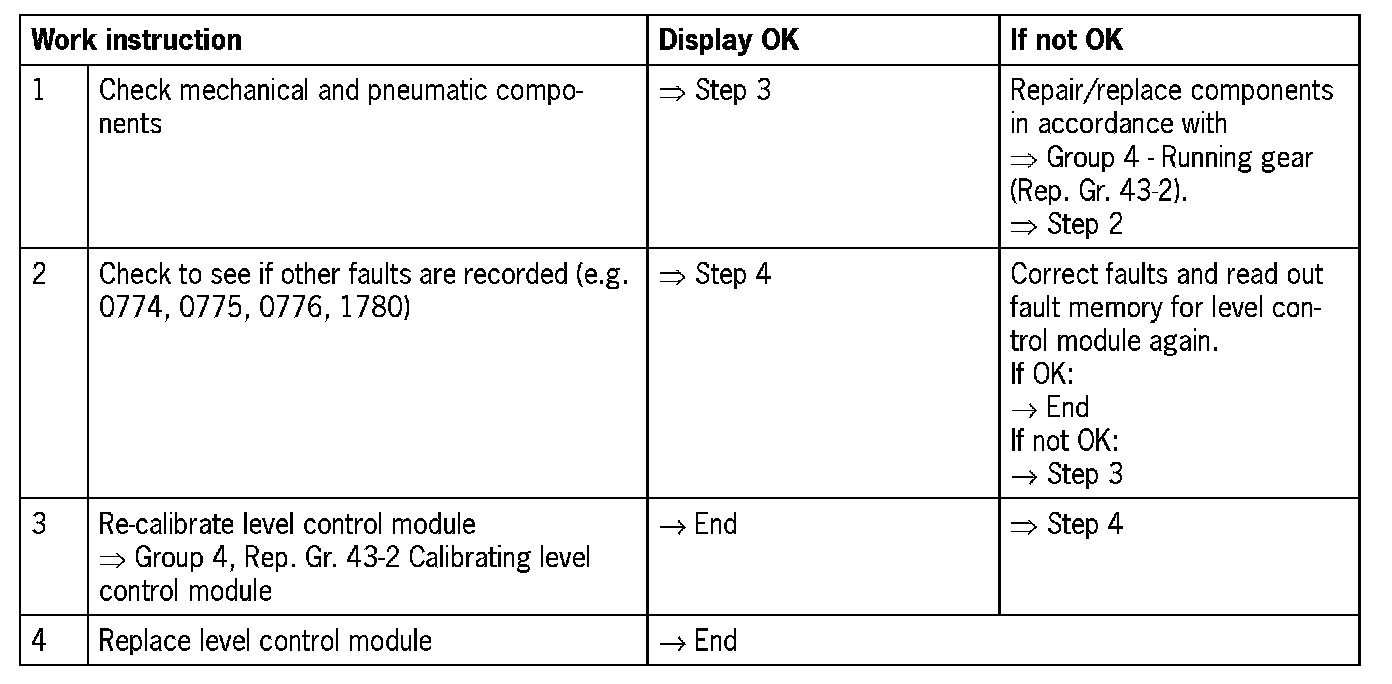

Diagnosis/troubleshooting
