Level Control

Fault Code 1487

System function test faulty

Diagnostic conditions

- Ignition on
- Internal function test on level adjustment control unit

Possible cause of fault

- Level adjustment control unit faulty (implausible signal)
- Level adjustment control unit not calibrated or calibrated incorrectly (implausible signal)
- Level adjustment control unit faulty

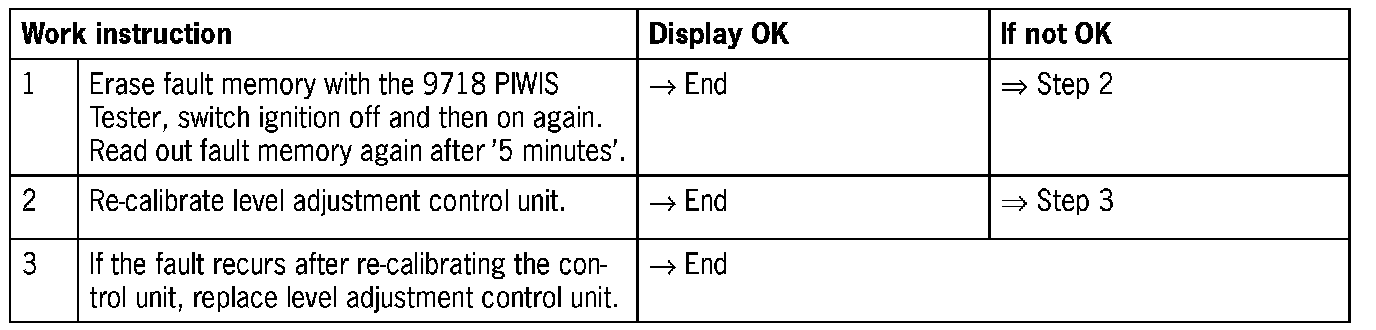

Diagnosis/troubleshooting
