Fault Code 1488

Fault code 1488

Coolant temperature sensor

Diagnostic conditions
- Ignition on
- Internal auxiliary heater control unit function test

Possible cause of fault
- Upper limit value exceeded (>4.8V)
- Open circuit in wiring (<0.16V)
- Auxiliary heater control unit faulty

Affected pins
-

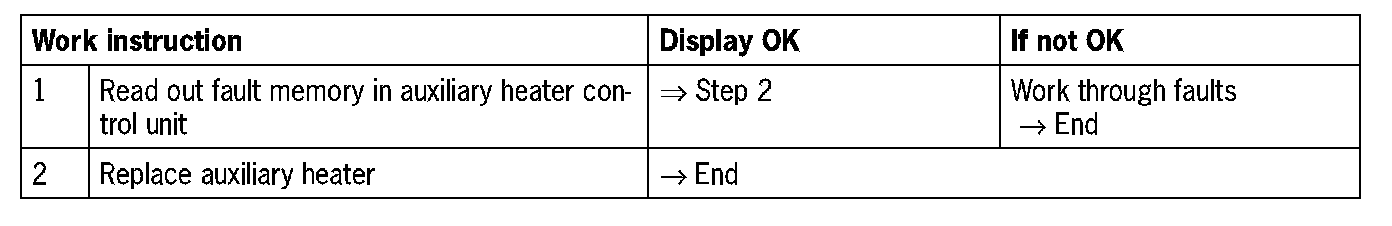

Diagnosis/troubleshooting
