Fault Code 15507

Fault code 15507

LIN message

Diagnostic conditions
- Switch on ignition (switch it off first if necessary)
- Internal function test on AWS control unit

Possible cause of fault
- For fault type 'faulty':
- Incorrect or incomplete messages from airbag control unit via LIN
- For fault type 'no signal/communication':
- AWS control unit faulty

Affected pins
-

Diagnosis/troubleshooting

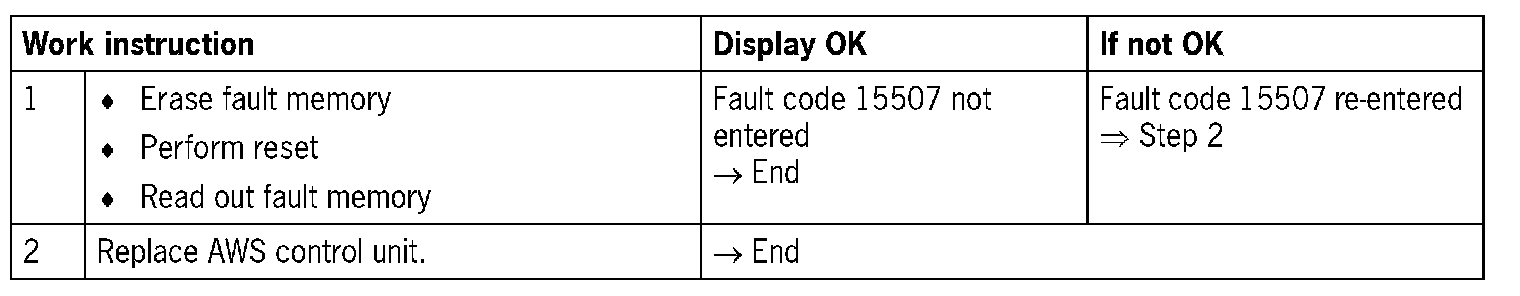

- For fault type 'faulty':

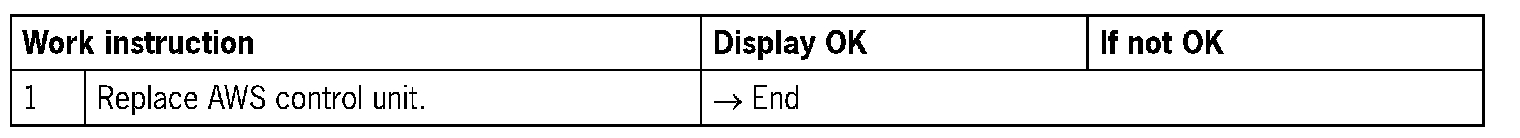

- For fault type 'no signal/communication':
