Fault Code 1612

Fault code P1612

DME control module coded incorrectly

Diagnostic conditions
- Ignition on
- Internal PSM control module function test

Possible cause of fault
DME control module was replaced and coded Incorrectly or was not coded (no display)
- Engine type coded incorrectly
- Transmission type coded incorrectly

Affected pins
-

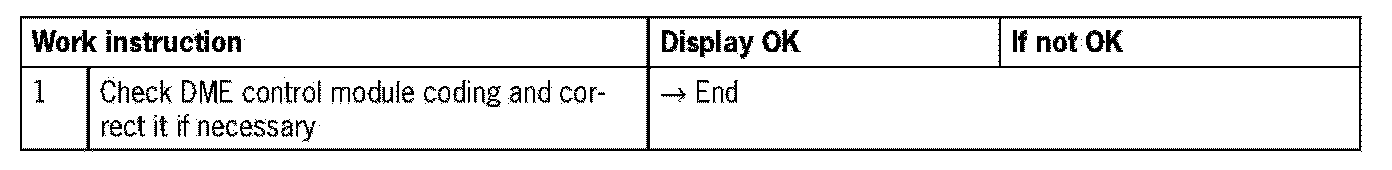

Diagnosis/troubleshooting PSM 0101

NOTE: For further troubleshooting please follow the diagnosis/troubleshooting instructions for the DME control module
