PSM

Fault code 1765

DME control module system deviation

NOTE: The fault is sent from the DME control module to the PSM control module via the CAN drive The PSM system is not faulty.

Diagnostic conditions
- Ignition on
- Internal PSM control module function test
- Engine running

Possible cause of fault
- Irregularities in DME control; the fault is sent from the DME control module via the CAN drive when the engine is running (no display)

Affected pins
-

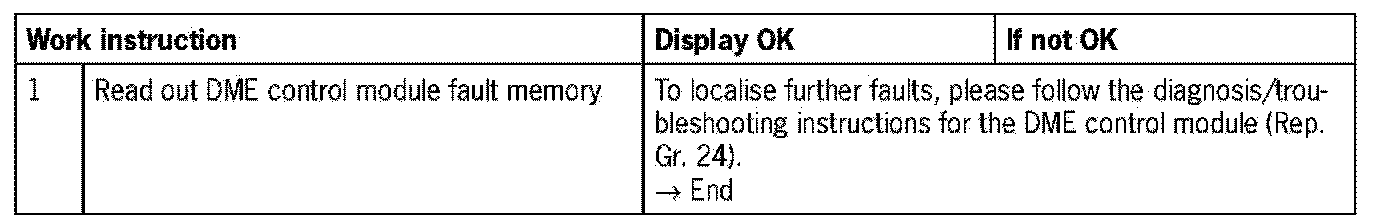

Diagnosis/troubleshooting PSM 0101
