Level Control

Fault Code 1767

Power supply for vehicle level sensors, left (front left and rear left)

Diagnostic conditions

- Ignition on
- Internal level control module function test

Possible cause of fault

- Short circuit to B+ in the wiring of pin 63 and/or pin 64 of the level control module
- Short circuit to ground in the wiring of pin 63 and/or pin 64 of the level control module
- Vehicle level sensors need to be calibrated
- Level control module faulty

Affected pins

Level control module, plug A:
- Pin 63 'FL vehicle level sensor'
- Pin 64 'RL vehicle level sensor'

Front left vehicle level sensor, plug A:
- Pin 5

Rear left vehicle level sensor, plug A:
- Pin 5

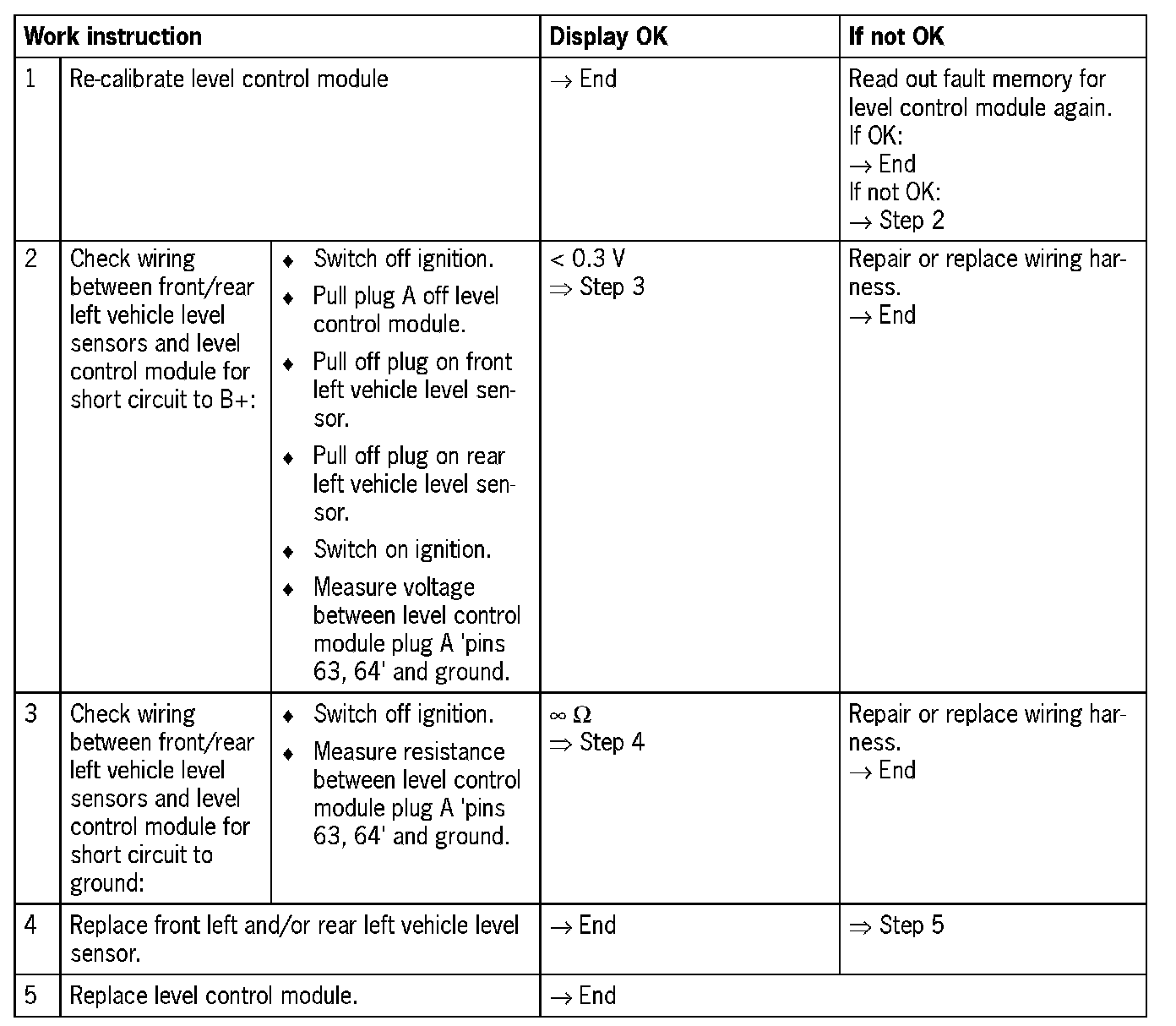

Diagnosis/troubleshooting
