Transfer Box (VG)

Fault Code 2062

Transverse lock mechanical fault

NOTE: After successful read out the fault memory must be erased and after satisfying the diagnostic conditions below must be read out again.

Diagnostic conditions
- Ignition on
- Transverse lock control unit internal function test
- Vehicle stationary
- Engine running
- Brake actuated
- Selector lever position 'N'
- Via the left rocker switch on the 'selector switch (running gear control module)', alternately select the functions LOW RANGE and transverse lock LOW RANGE 100% (see Driver's Information)

Possible causes of fault
- 'Mechanical fault': mechanical wear in transverse lock

Affected pins
Transverse lock control unit plug:
- Pin '-'

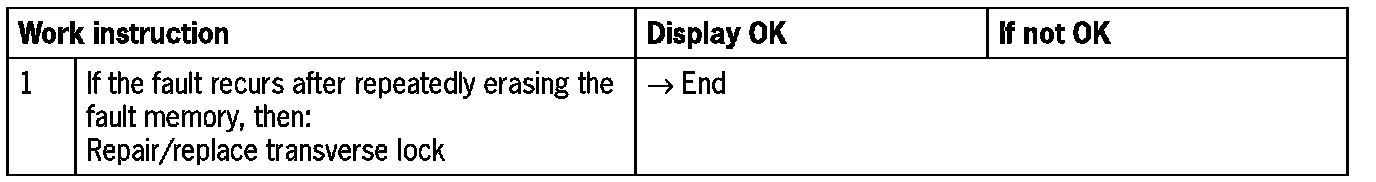

Diagnosis/troubleshooting
