Fault Code 2551

Fault code 2551

NOTE: This fault code is entered when the button is actuated for more than 30 seconds.

Button

Diagnostic conditions
- Ignition on
- Internal function test on off-road stabiliser (ORS) control module

Possible causes of fault
- Implausible signal

Affected pins
Off-road stabiliser control module, plug B:
- Pin 12 'button'

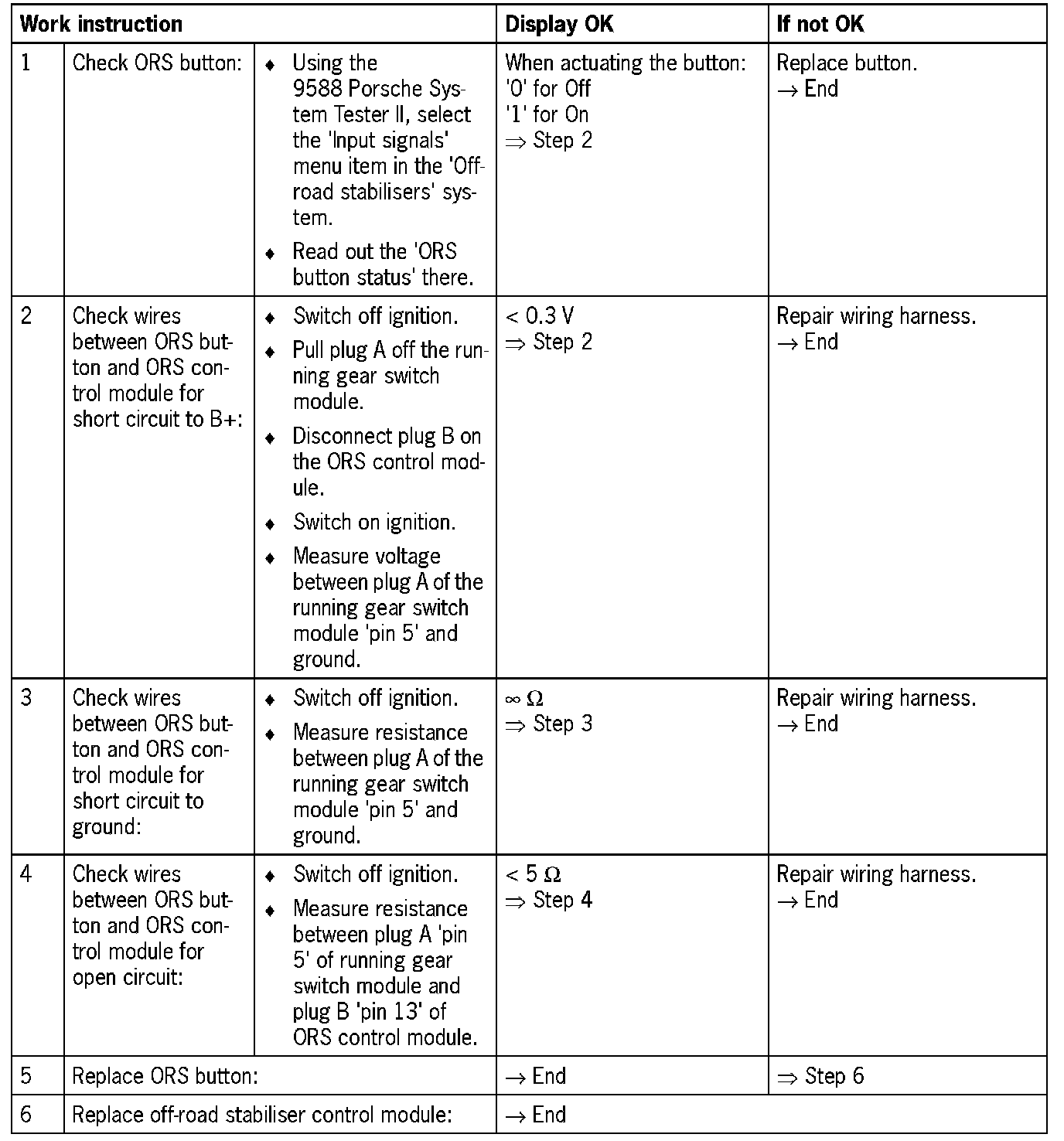

Diagnosis/troubleshooting
