Fault Code 2552

Fault code 2552

LED in button

Diagnostic conditions
- Ignition on
- Internal function test on off-road stabiliser (ORS) control module

Possible causes of fault
- Short circuit to B+
- Short circuit to ground
- Open circuit in wiring

Affected pins
Off-road stabiliser control module, plug B:
- Pin 13 'LED -'

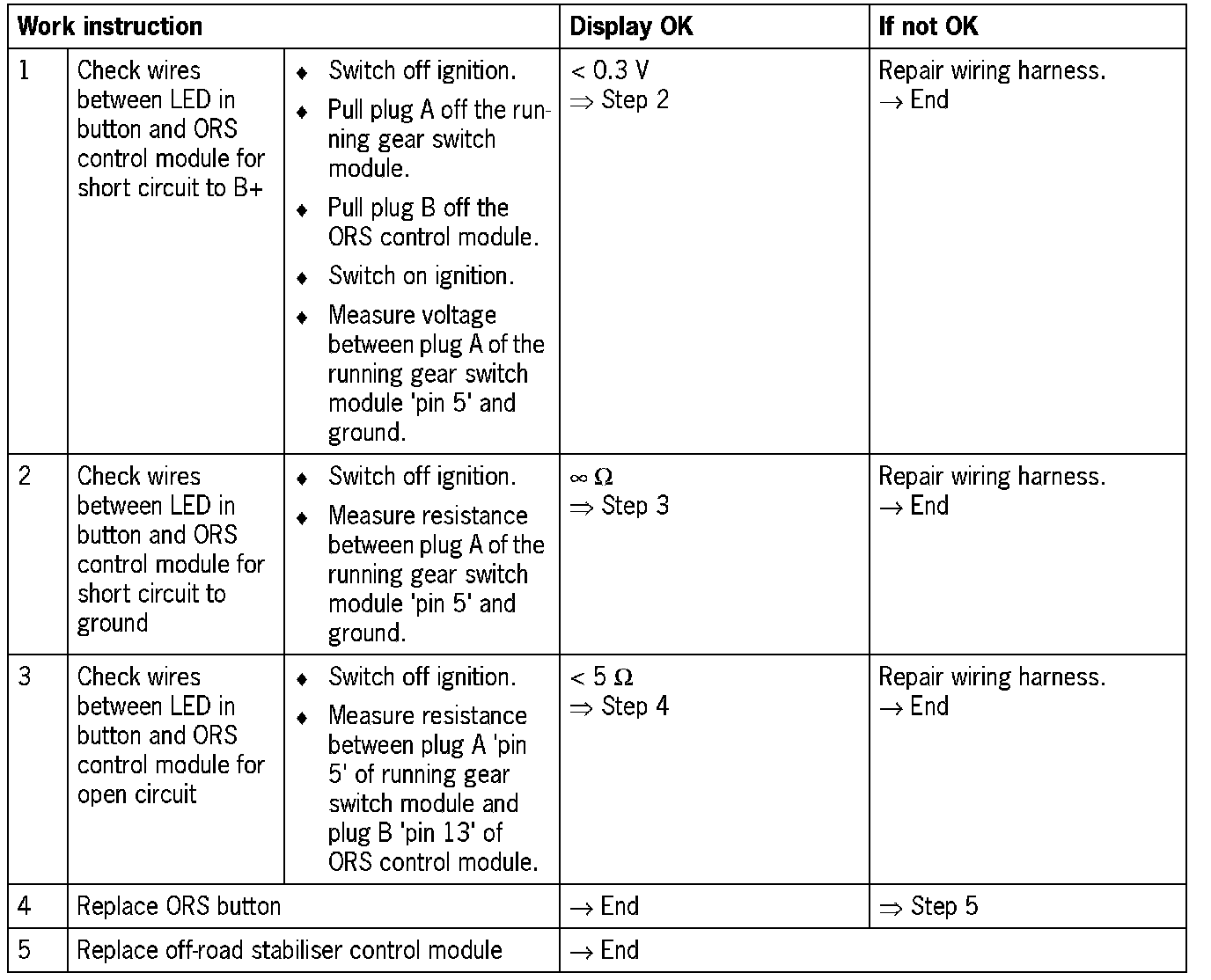

Diagnosis/troubleshooting
