Fault Code 2553

Fault code 2553

VA valve

Diagnostic conditions
- Ignition on
- Internal offroad stabilizer control module function test

Possible causes of fault
- Short circuit to B+
- Short circuit to ground
- Open circuit in wiring
- Implausible signal

Affected pins
Offroad stabilizer control module connector B:
- Pin 17 'VA valve -' to hydraulic unit plug A pin 6 'valve -'
- Pin 20 'VA valve +' to hydraulic unit plug A pin 5 'valve +'

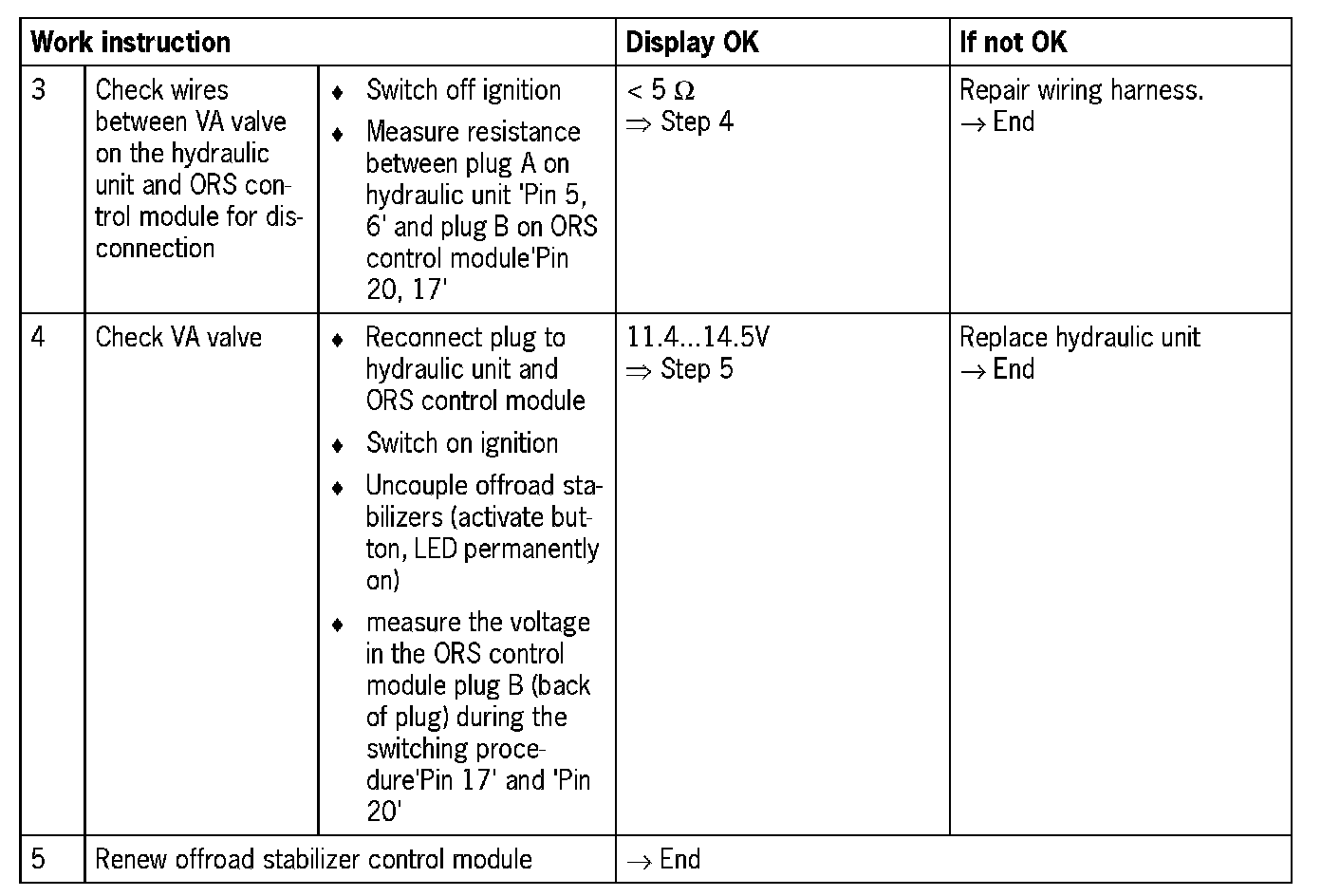

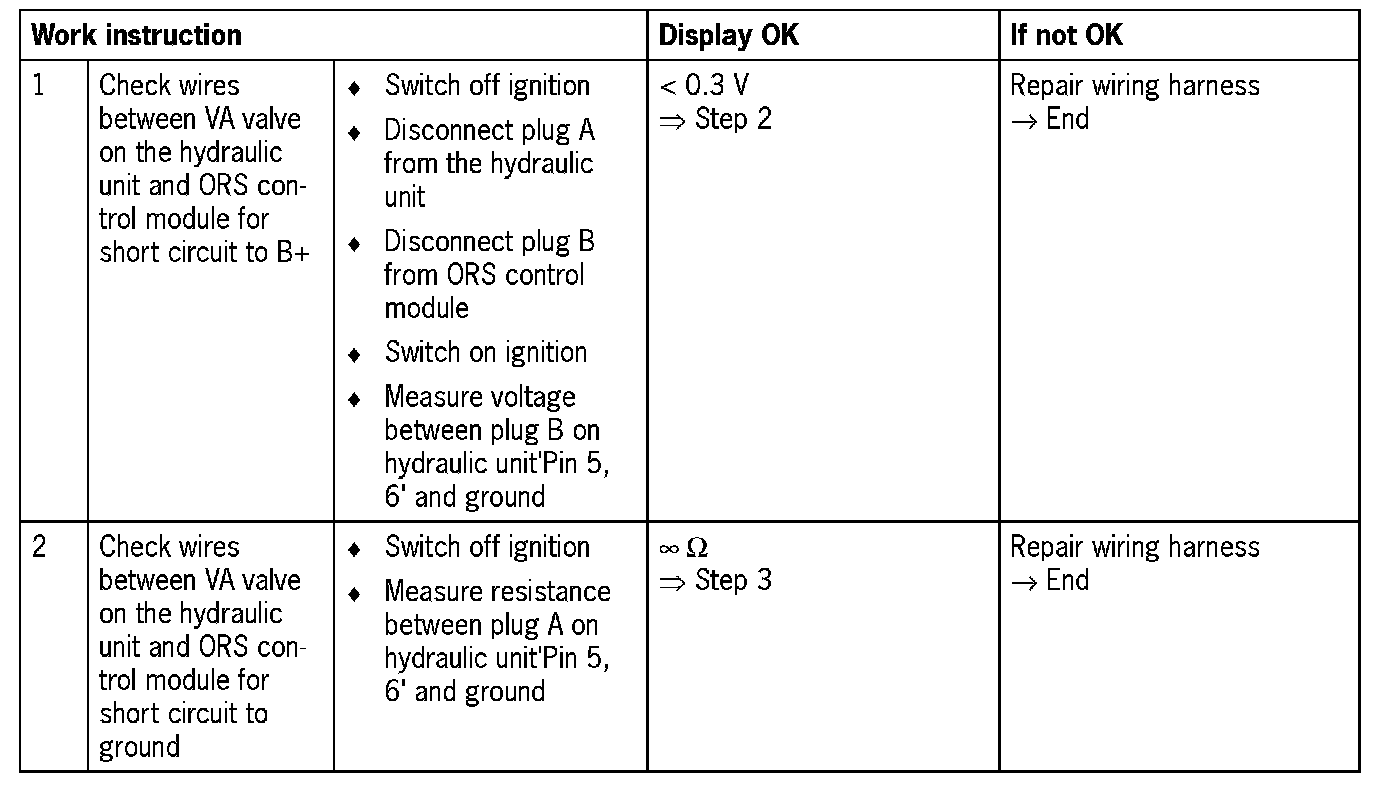

Diagnosis/troubleshooting
