Fault Code 2555

Fault code 2555

el. hydraulic pump

Diagnostic conditions
- Ignition on
- Internal offroad stabilizer control module function test

Possible causes of fault
- Short circuit to ground
- Open circuit in wiring
- el. hydraulic pump faulty

Affected pins
Offroad stabilizer control module connector A:
- Pin 2 'Pump motor +' to hydraulic unit plug A pin 3 'Pump motor +'

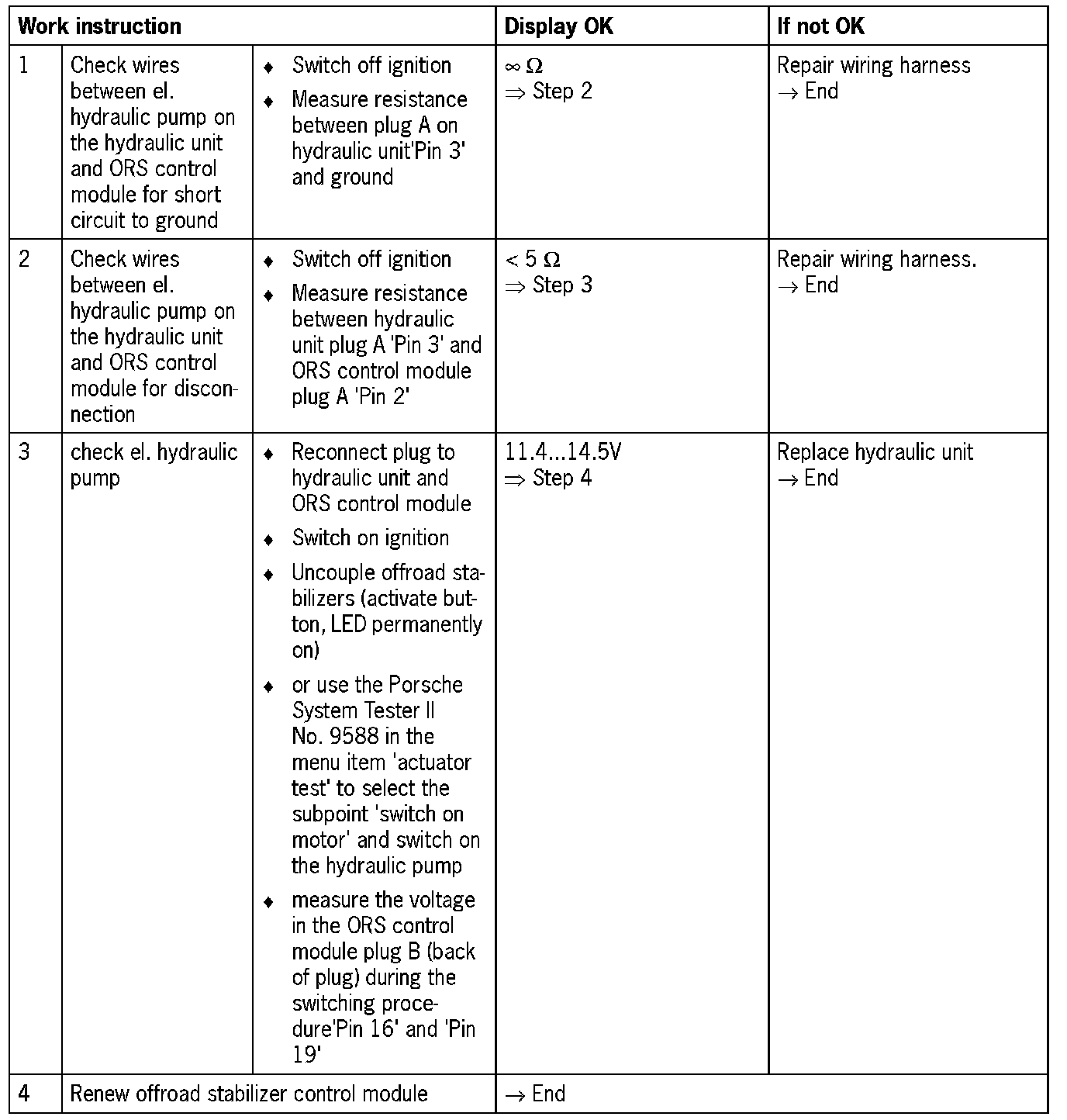

Diagnosis/troubleshooting
