Fault Code 2600

Fault code 2600

Servo motor for rear right temperature valve

Diagnostic conditions
- Ignition on
- Battery voltage OK (11.4 to 14.5 V)
- Internal function test completed on rear air-conditioning system regulator control module

Possible causes of fault
- Short circuit to B+
- Short circuit or open circuit
- Short circuit to ground
- Servo motor flap stiff
- Servo motor faulty
- Rear air-conditioning system regulator faulty

Affected pins
Air-conditioning system regulator control module, rear: Plugs B, C and D

- Plug B: Pin 12 'Right temp. valve (servo motor for rear right temperature valve OPEN)'
- Plug B: Pin 13 'Right temp. valve (servo motor for rear right temperature valve CLOSED)'
- Plug C: Pin 15 'Right temp. valve (feedback signal lead, servo motor for rear right temperature valve)'
- Plug D: Pin 3 '5 V reference voltage'
- Plug D: Pin 7 'Ground signal'

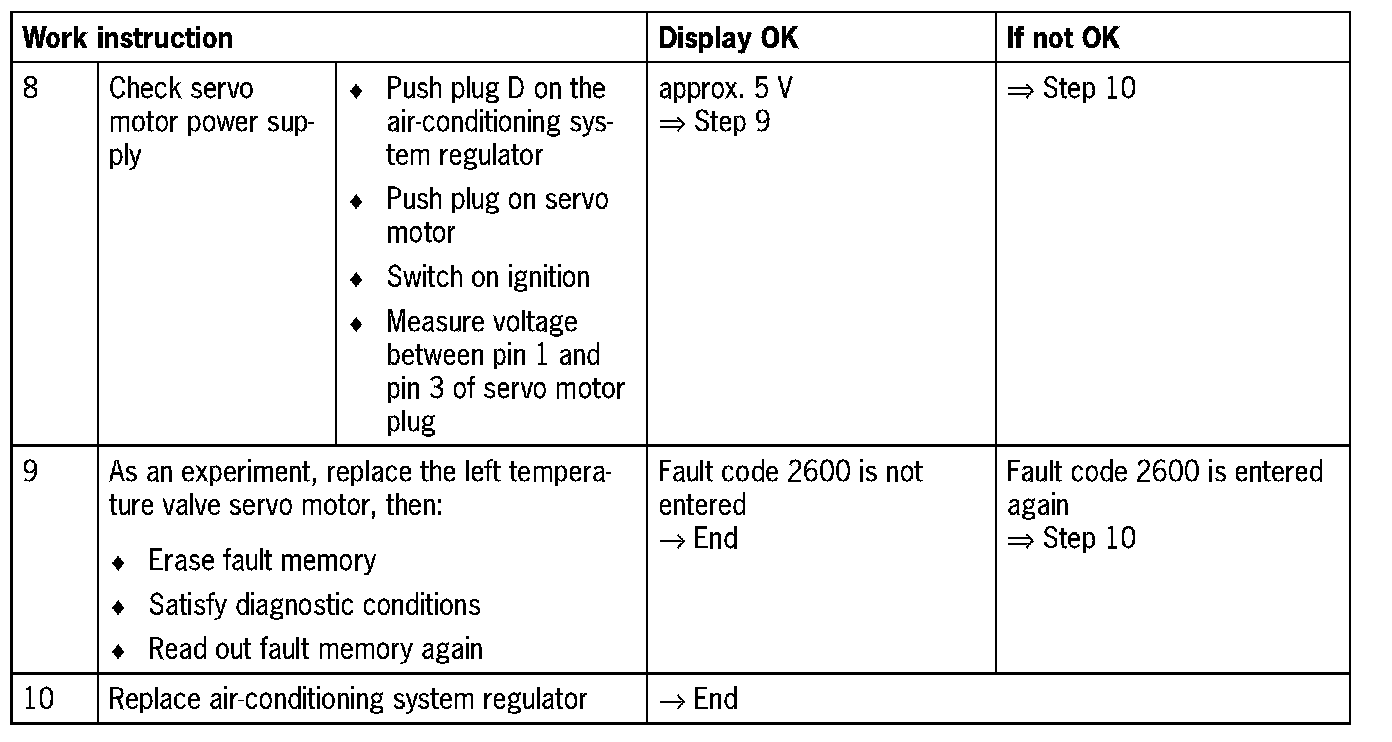

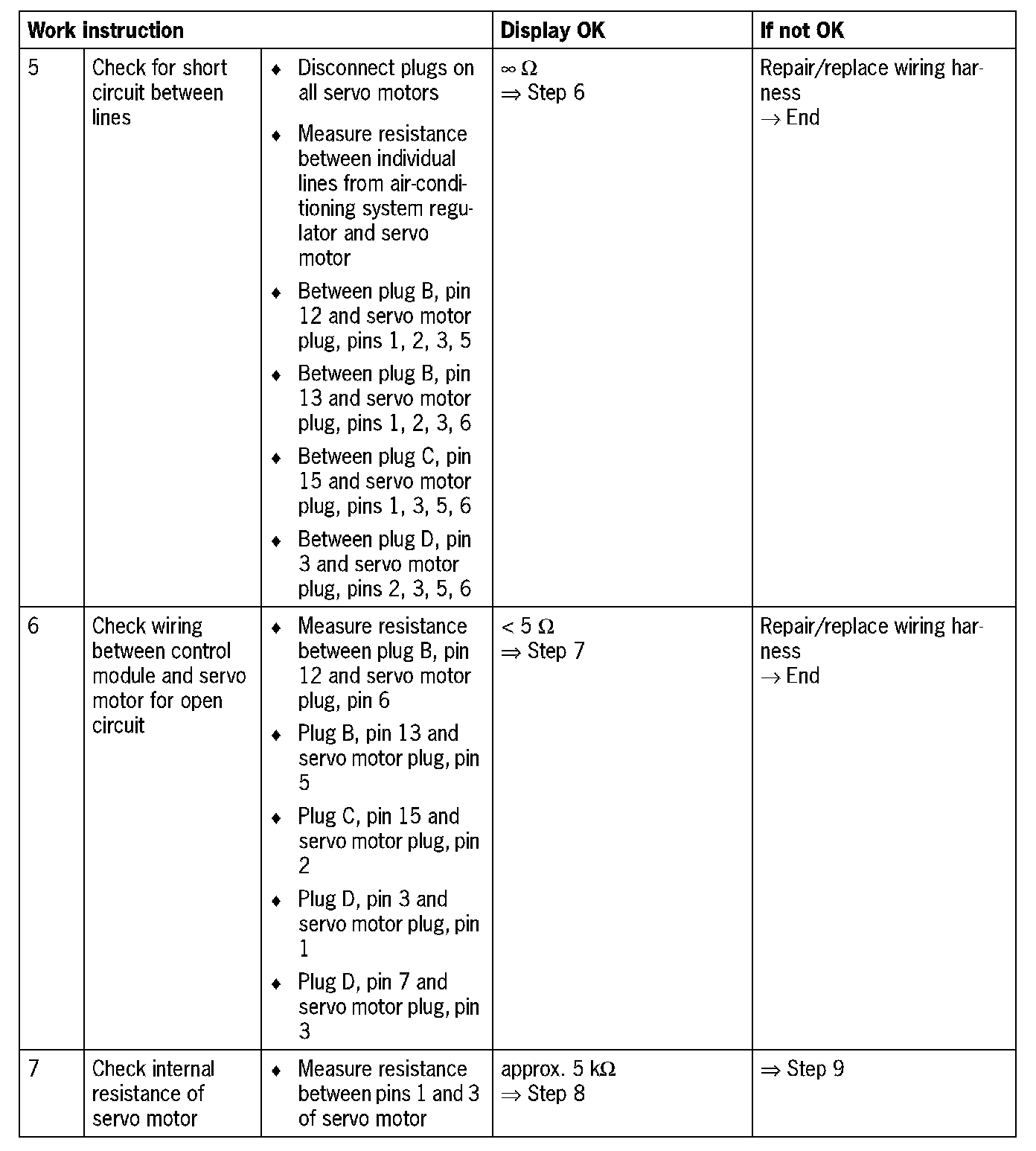

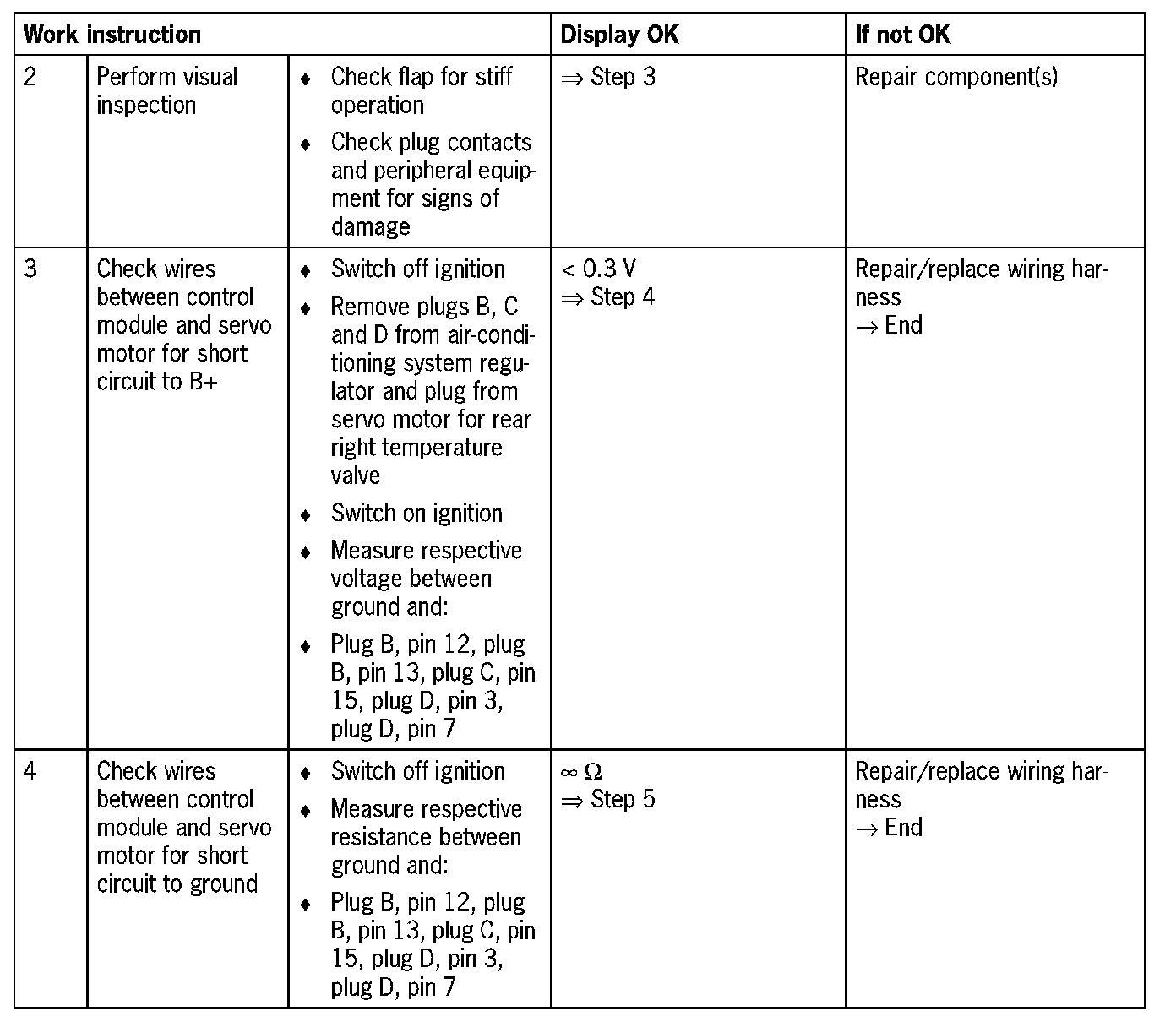

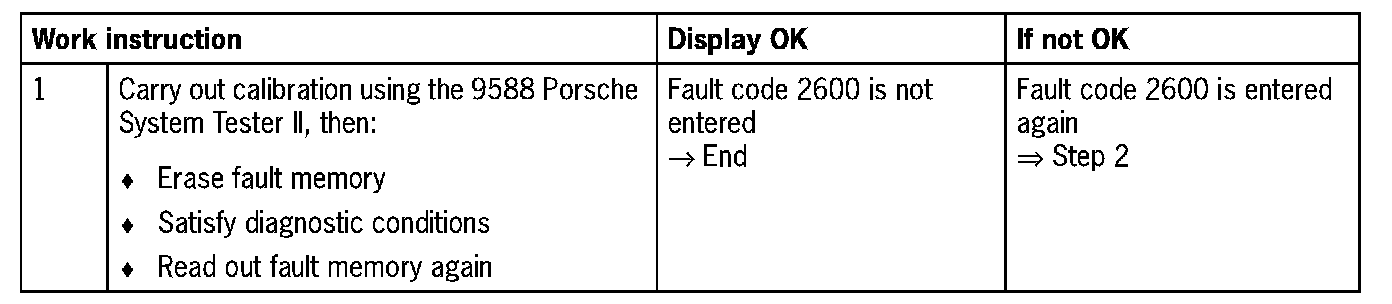

Diagnosis/troubleshooting
