Gateway

8002 PCM2 Gateway

Control unit faulty (PCM2)

Diagnostic conditions
- Ignition on
- PCM2 ON

Possible cause of fault
- EEPROM fault

NOTE:
- CAN Infotainment is connected to the following control units:
- PCM2/CDR23
- Instrument cluster
- Wiper motor (with integrated control unit)
- Additional heating control unit
- Compass control unit (magnetic field sensor)
- The MOST optical waveguide is connected to the following control units:
- amplifier
- CD changer
- Telephone/telematics

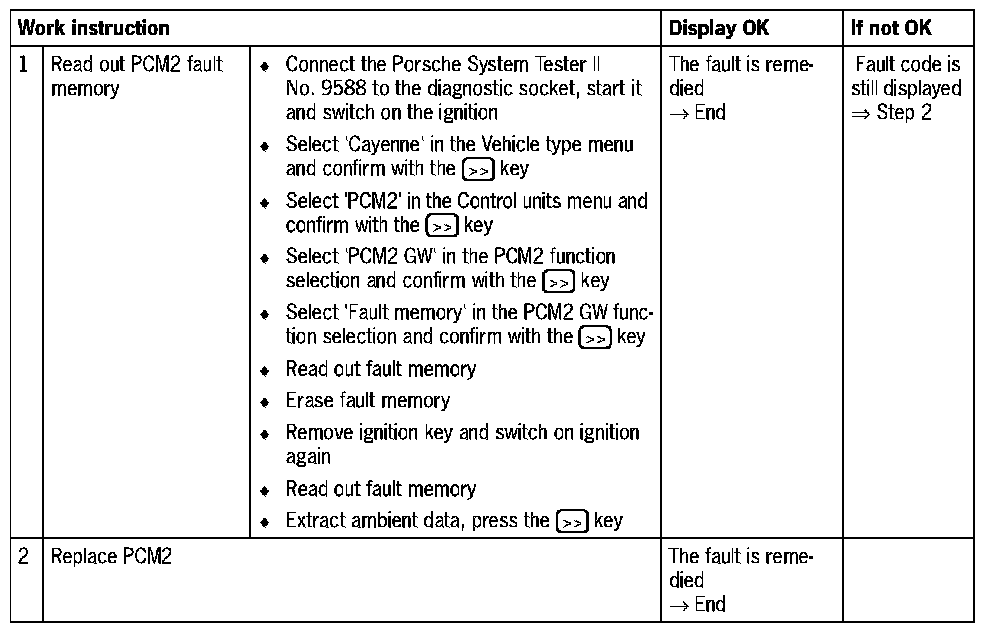

Diagnosis/troubleshooting on the PCM2
