CD Changer

8003 CD changer

Audio CD read error (formatting error on CD)

Diagnostic conditions
- Ignition on.
- PCM2/CDR23 ON
- Manual actuation

NOTE:
- Fault code 8013 is recorded in the PCM2 MMI/CDR23 if the operating buttons are actuated for '≥ one 'or more minutes
- Deactivate the 'automatic traffic announcement' before performing the diagnosis on the PCM2 If this is not done, the diagnosis will abort (applies only to software version number < 03)

Possible cause of fault
- CD changer faulty

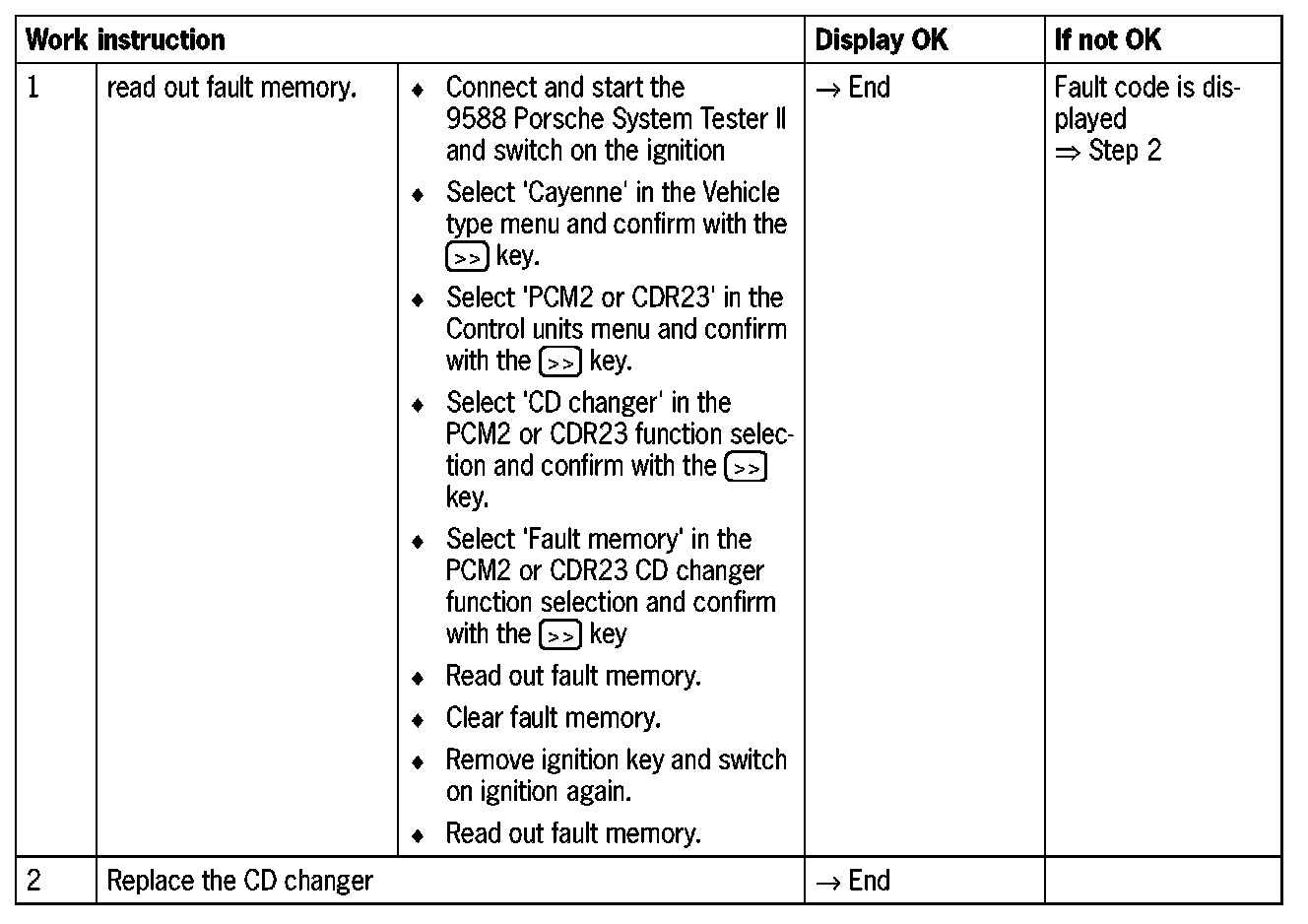

Diagnosis/troubleshooting
