PCM2 CD Changer

8003 CD Changer

Audio CD read error (formatting error on CD)

Diagnostic conditions
- Ignition on.
- PCM2/CDR23 ON
- Manual actuation

NOTE:
- Fault code 8013 is recorded in the PCM2 MMI/CDR23 if the operating buttons are actuated for one or more minutes.
- Deactivate the automatic traffic announcement before performing the diagnosis on the PCM2. If this is not done, the diagnosis will abort (applies only to software version number less than 03).

Possible cause of fault
- CD changer faulty

Affected pins
- none

Diagnosis/troubleshooting

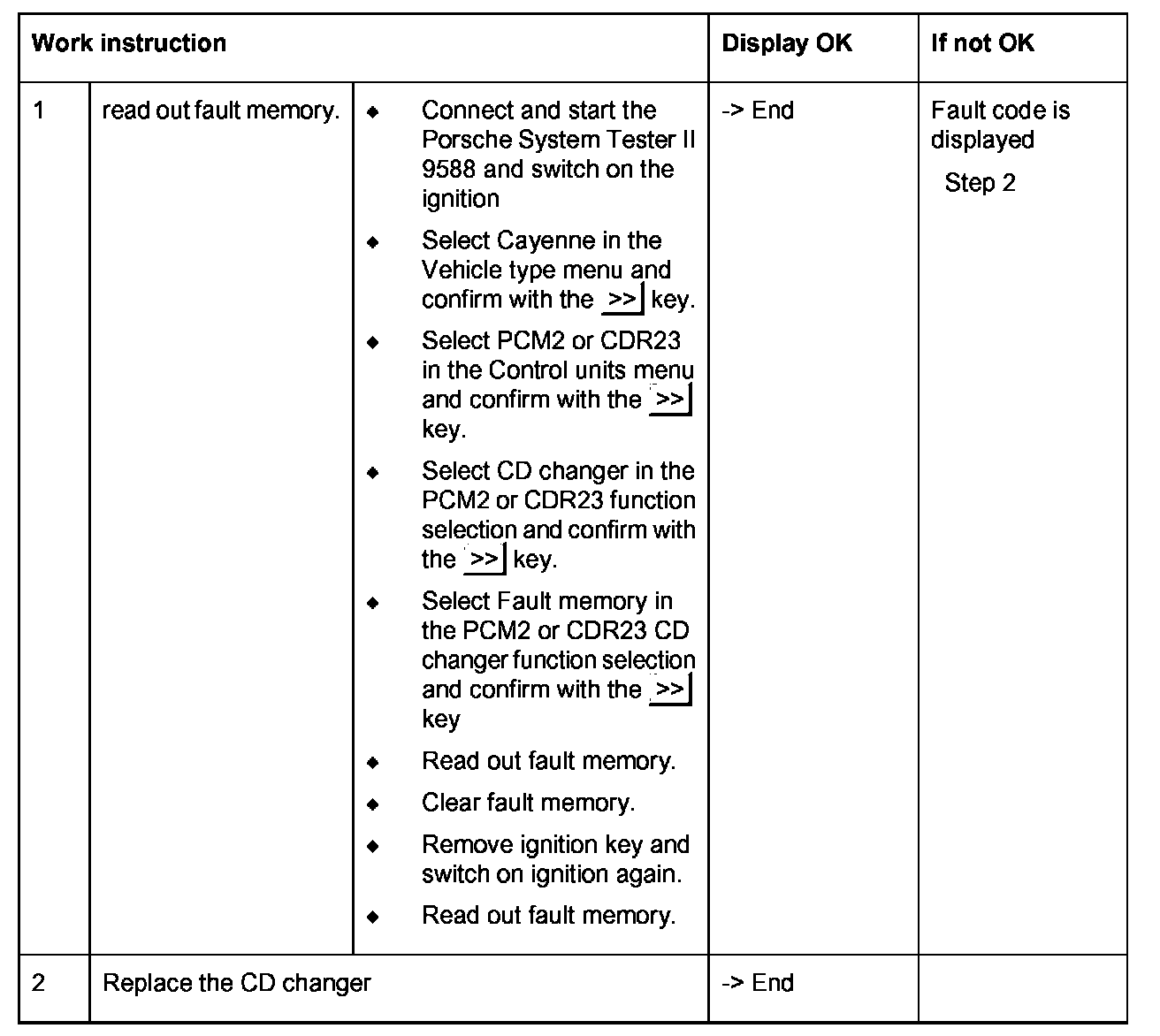

Work Instruction 1 - 2:
