PCM2/CDR23 - External BOSE Amplifier

8003 External BOSE Amplifier

Fault in front left and rear right loudspeaker channel.

Diagnostic conditions
- Ignition on.
- PCM2/CDR23 ON

NOTE:
- Fault code 8003 is recorded in the PCM2 MMI if the operating buttons are actuated for 1 Min.
- Deactivate the automatic traffic announcement before performing the diagnosis on the PCM2. If this is not done, the diagnosis will abort.

Possible cause of fault
- Short circuit to B+/ground in the wiring harness
- Short circuit - loudspeaker faulty
- Short circuit - amplifier faulty

Affected pin
External BOSE amplifier, plug A, pin 27, pin 32, pin 26, pin 31.

Diagnosis/troubleshooting - BOSE

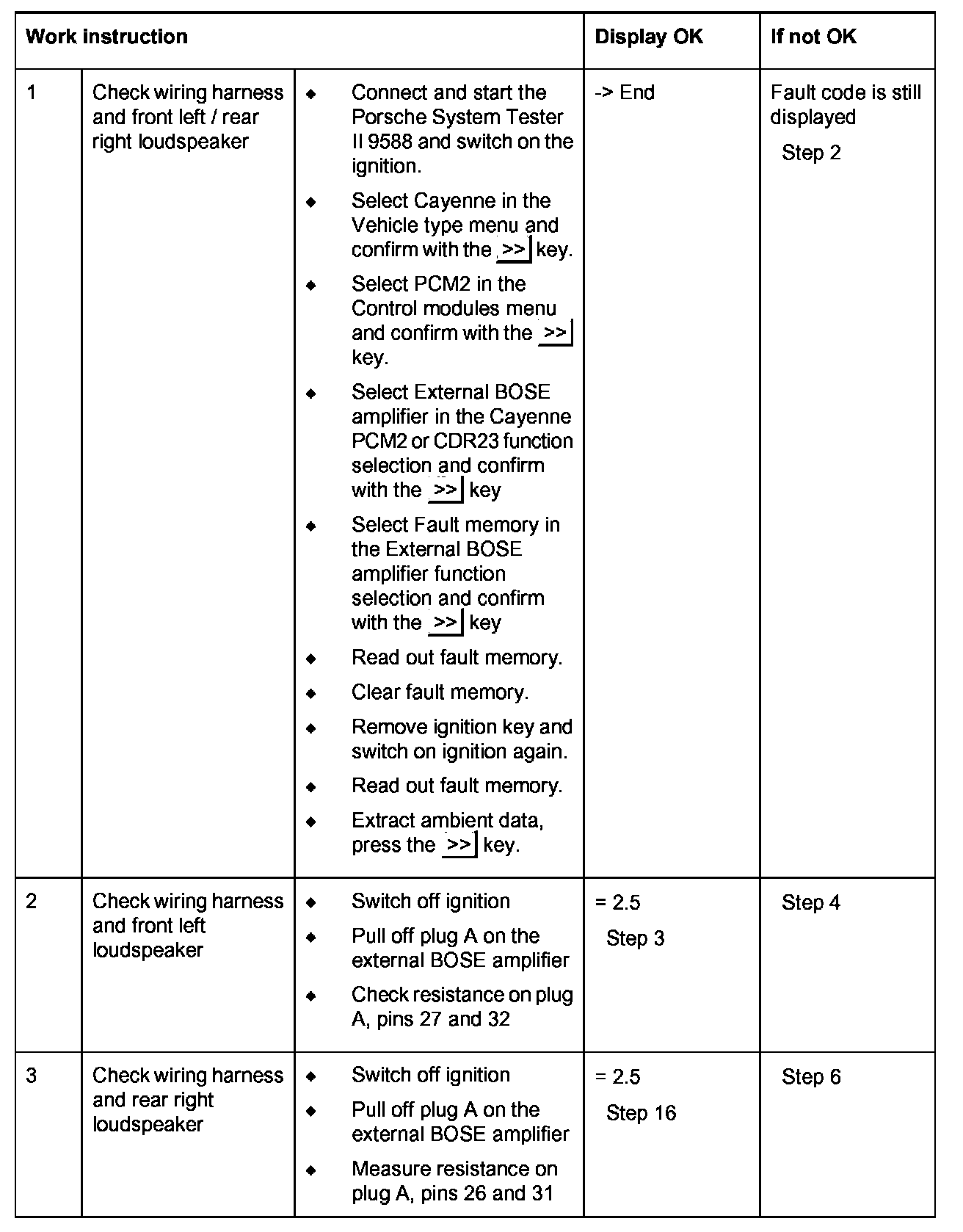

Work Instruction 1 - 3:

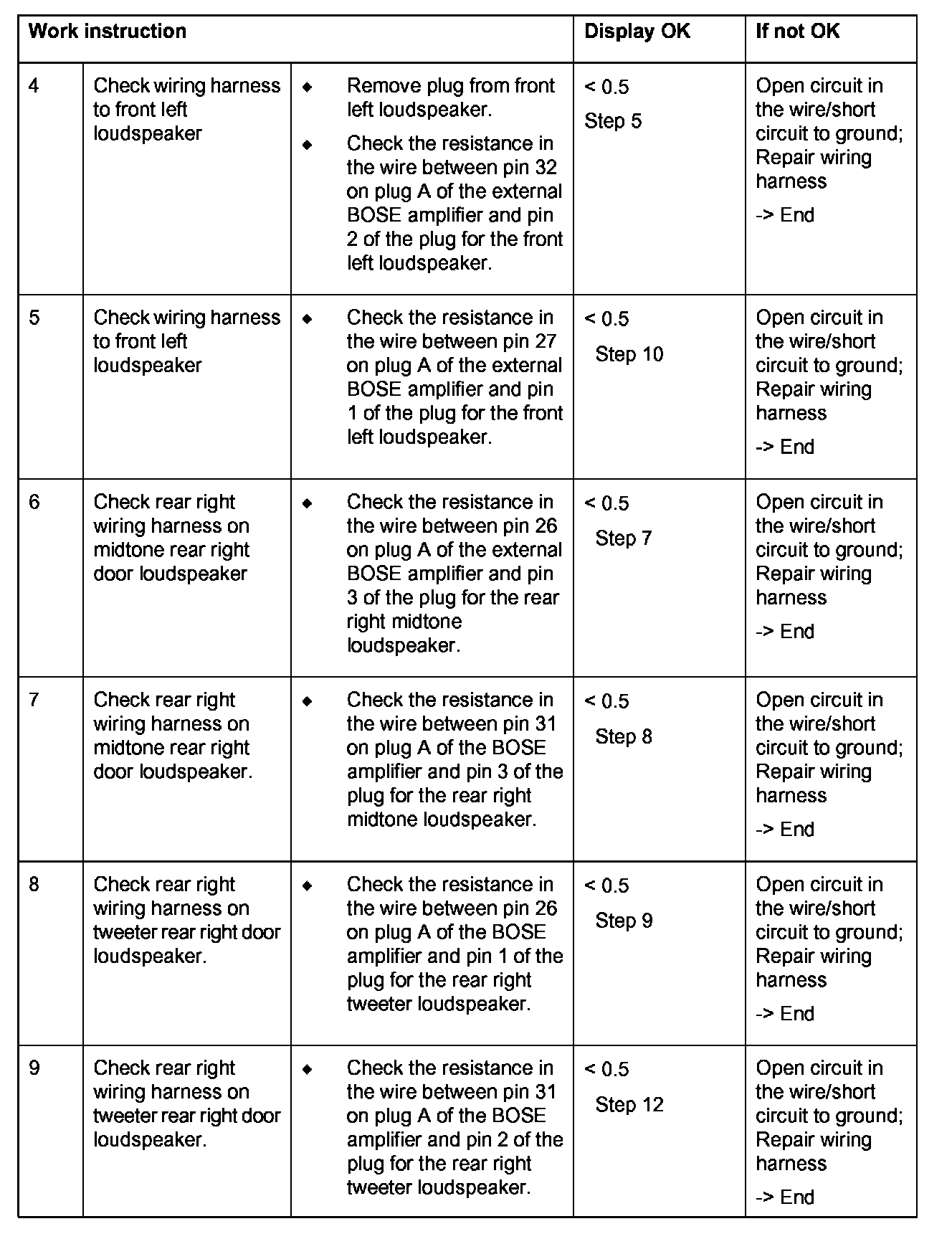

Work Instruction 4 - 9:

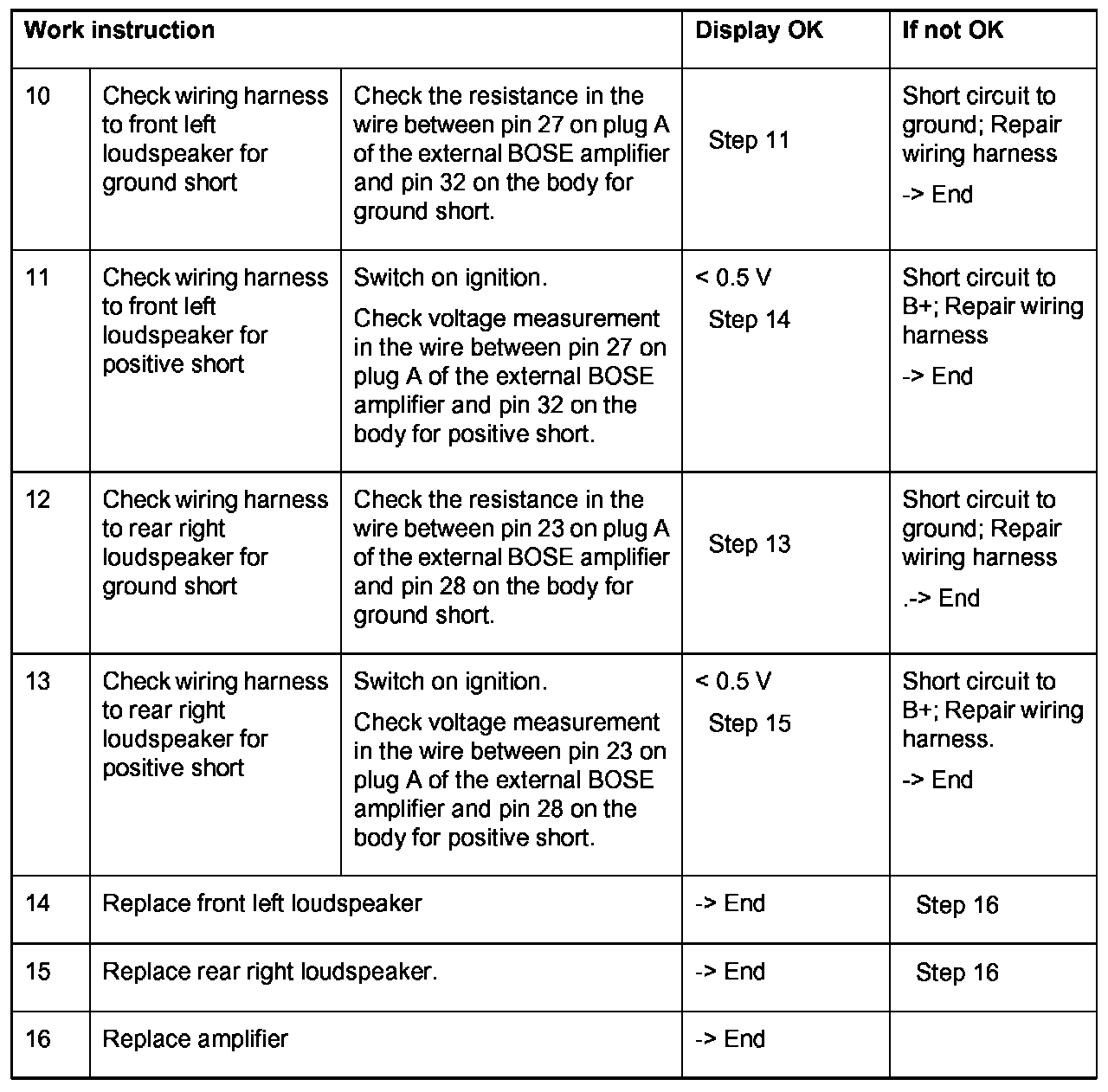

Work Instruction 10 - 16:
