PCM2/CDR23 (MMI)

8004 PCM2-MMI

Single CD drive overheating
- Battery temperature too high

Diagnostic conditions
- Ignition ON.
- PCM2 on.

Possible cause of fault
- Exterior and interior temperatures very high
- Operation of heater

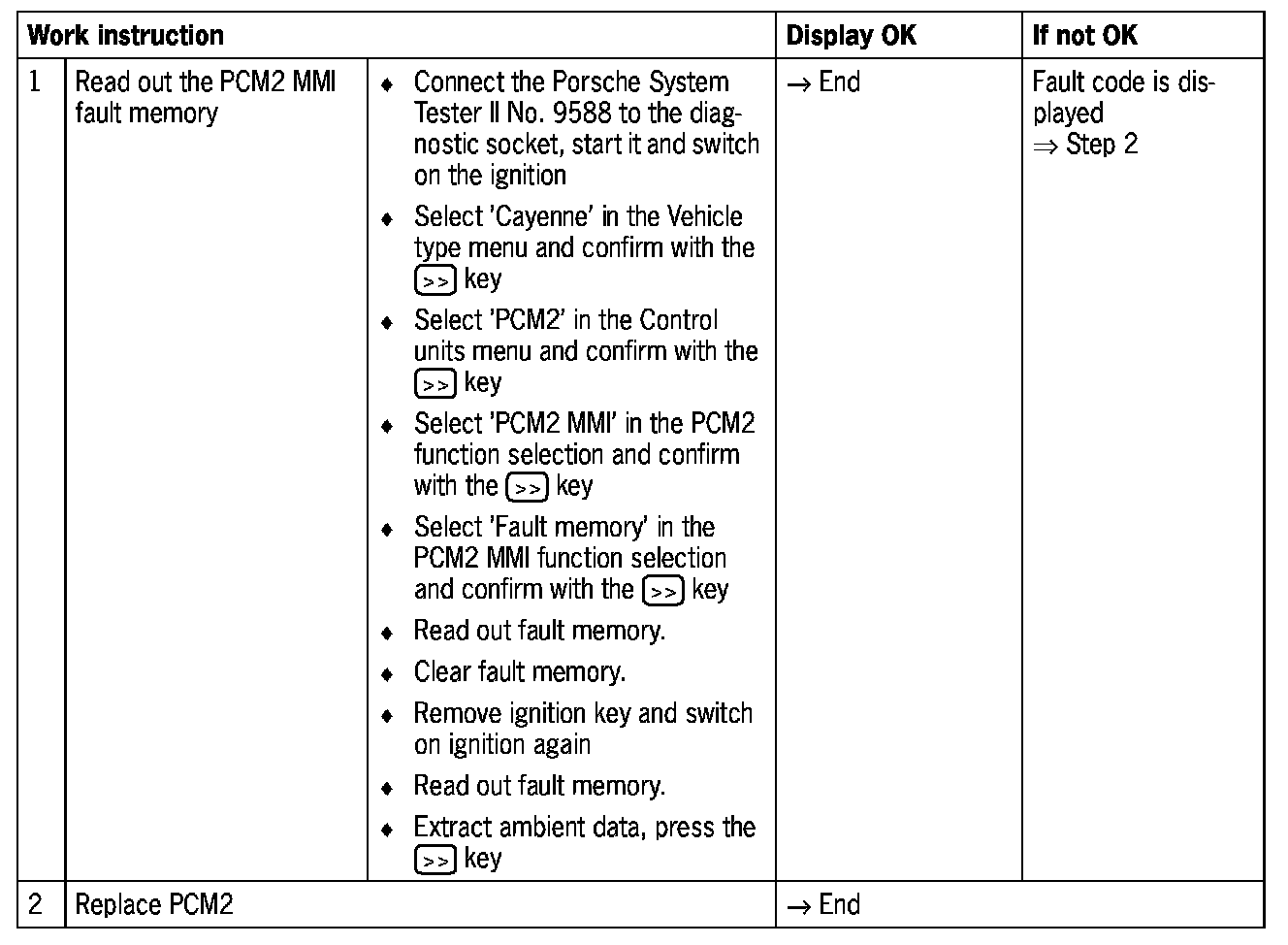

Diagnosis/troubleshooting
