PCM2/CDR23 - MMI

8004 PCM2 - MMI

Single CD drive overheating
- Battery temperature too high

Diagnostic conditions
- Ignition ON.
- PCM2 on.

Possible cause of fault
- Exterior and interior temperatures very high
- Operation of heater

Affected pins
- none

Diagnosis/troubleshooting

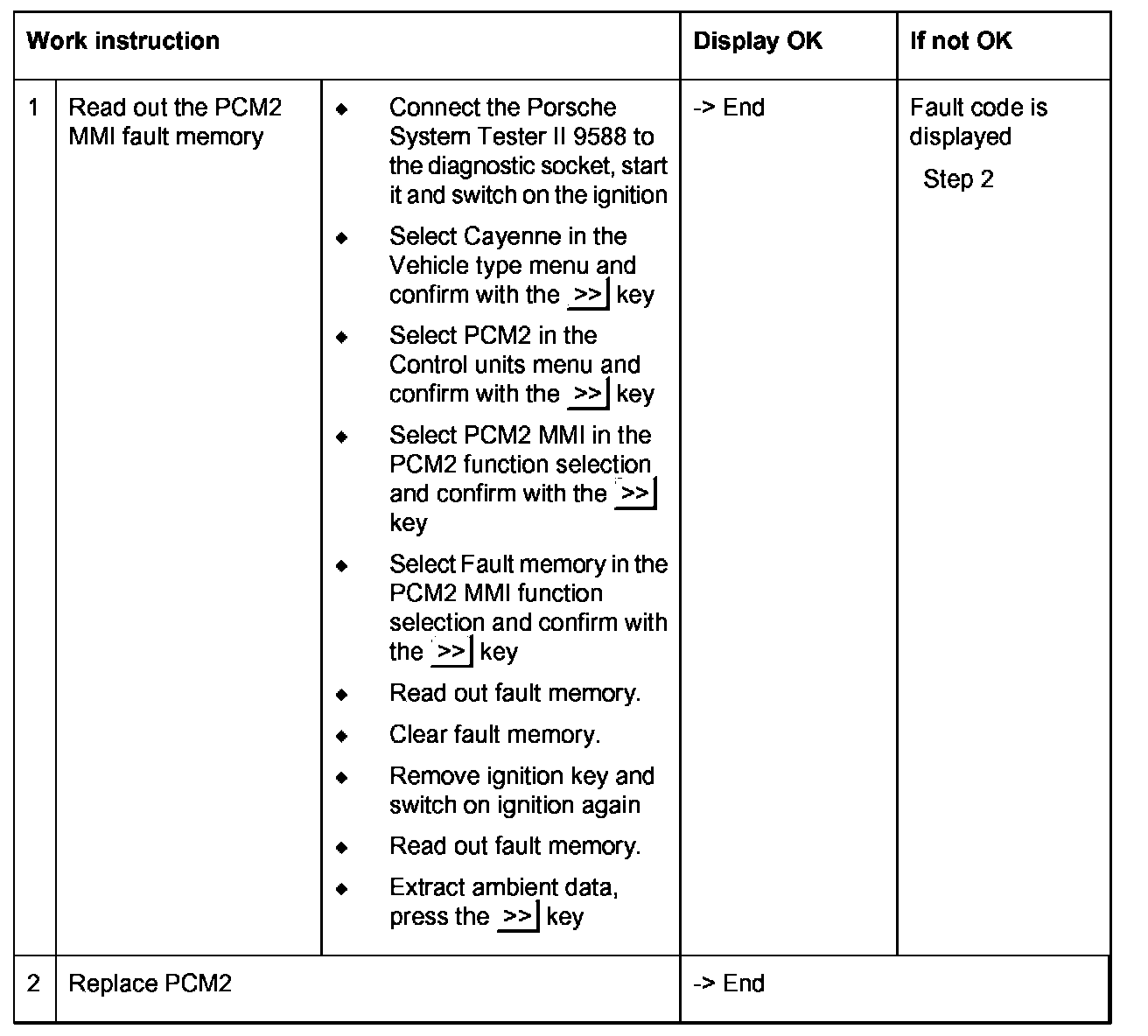

Work Instruction 1 - 2:
