PCM2/CDR23 - External BOSE Amplifier

8005 External BOSE Amplifier

Fault in front center and rear center.

Diagnostic conditions
- Ignition on.
- PCM2/CDR23 ON

NOTE:
- Fault code 8003 is recorded in the PCM2 MMI if the operating buttons are actuated for '≥ 1 Min.'.
- Deactivate the 'automatic traffic announcement' before performing the diagnosis on the PCM2. If this is not done, the diagnosis will abort.

Possible cause of fault
- Open circuit, contact resistance, or short circuit to B+/ground in the wiring harness
- Loudspeaker faulty
- Amplifier faulty

Affected pin
External BOSE amplifier, plug A, pin 23, pin 28, pin 13, pin 14.

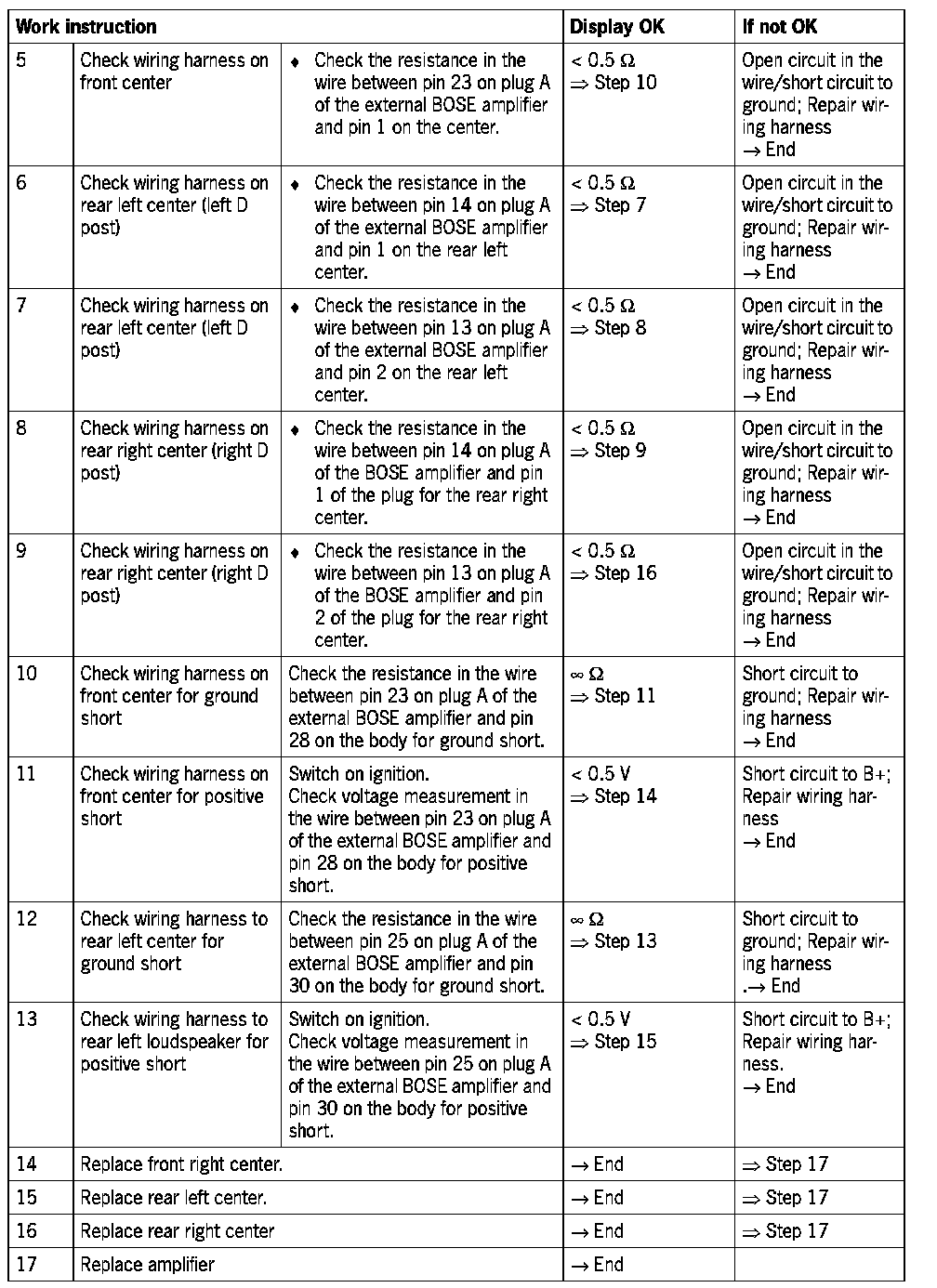

Diagnosis/troubleshooting - BOSE

Part 1:

Part 2:
