PCM2/CDR23 - External Harman Amplifier

8005 External Harman Amplifier

Left subwoofer channel faulty (left door speaker)

Diagnostic conditions
- Ignition on
- PCM2/CDR23 on

NOTE: Fault code 8003 is recorded in the PCM2 MMI if the operating buttons are actuated for one or more minutes

Possible cause of fault
- Short circuit to B+/ground in the wiring harness
- Short circuit - loudspeaker faulty
- Short circuit - amplifier faulty

Affected pin
External Harman amplifier, plug A, pins 7 and 16

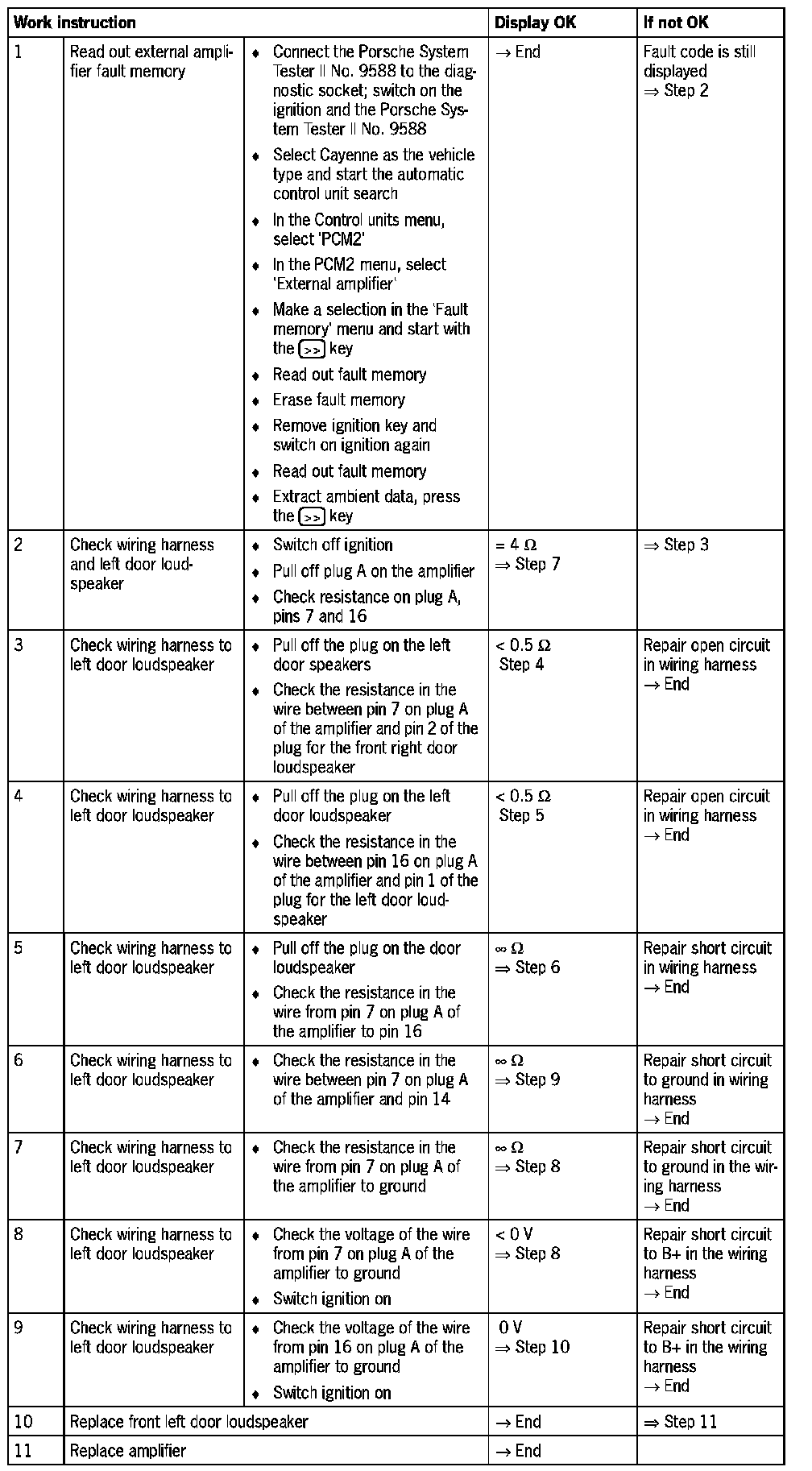

Diagnosis/troubleshooting
