PCM2 CD Changer
8006 CD Changer
Mechanical fault while inserting CD into magazine
Diagnostic conditions
- Ignition on
- PCM2/CDR23 ON
Possible cause of fault
- CD changer faulty
- Magazine warped.
Affected pins
- none
Diagnosis/troubleshooting

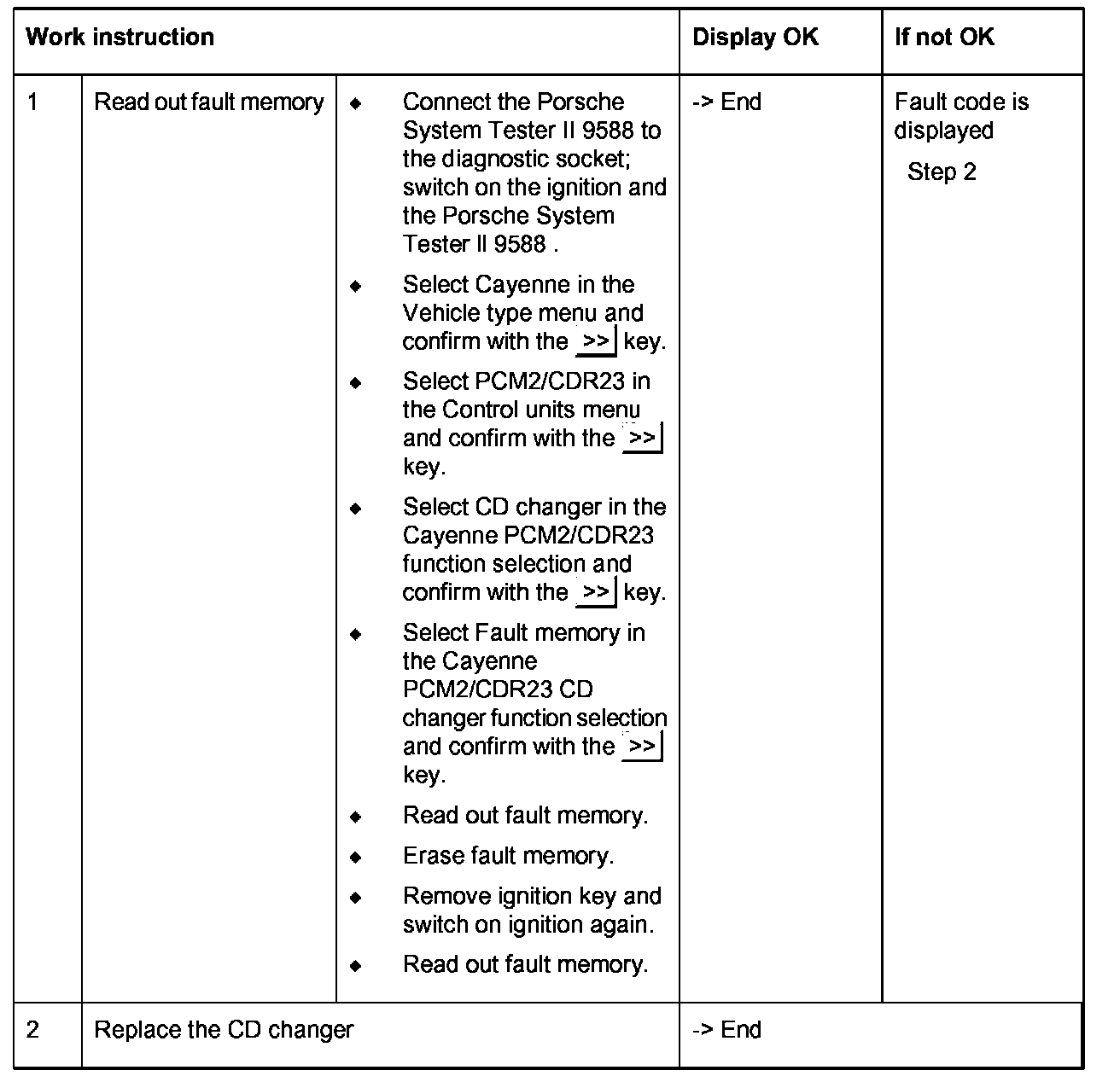

Work Instruction 1 - 2:
