PCM2/CDR23 - External BOSE Amplifier

8006 PCM2 - external BOSE amplifier

BOSE amplifier temperature
- Operating temperature too high

Diagnostic conditions
- Ignition on
- PCM2 on

Possible cause of fault
- Exterior and interior temperature very high
- Operation of heater

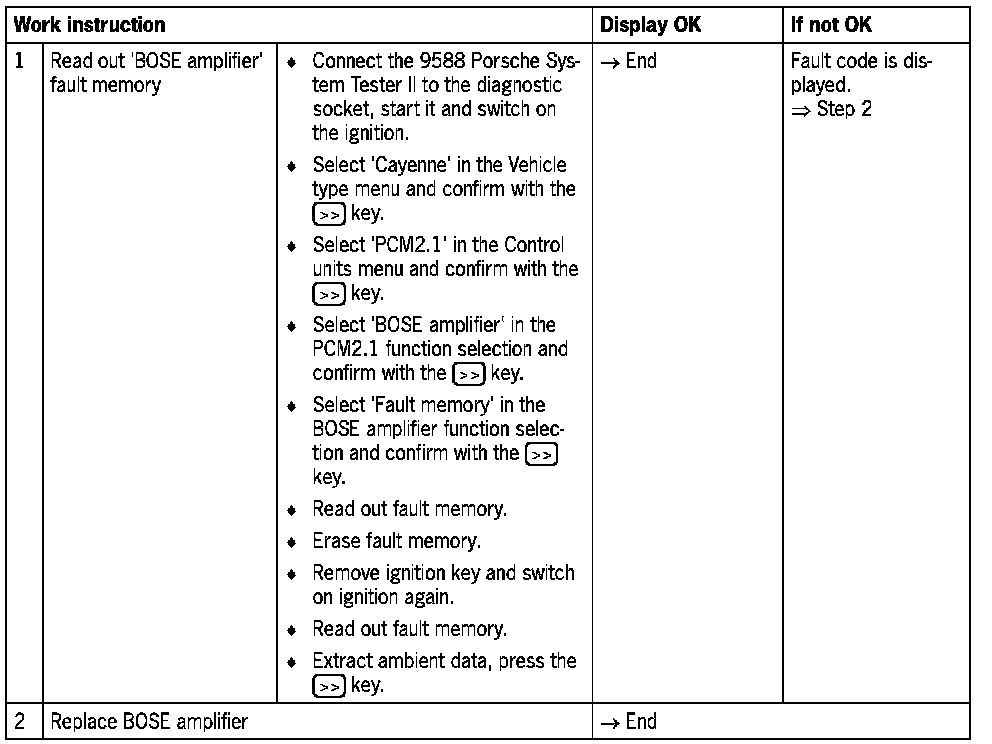

Diagnosis/troubleshooting
