PCM2/CDR23 - MMI

8006 PCM2 - MMI

Single CD drive internal fault.

Diagnostic conditions
- Ignition ON.
- PCM2 on.

Possible cause of fault
- Audio CD damaged or inserted incorrectly

Affected pin
- none

Diagnosis/troubleshooting

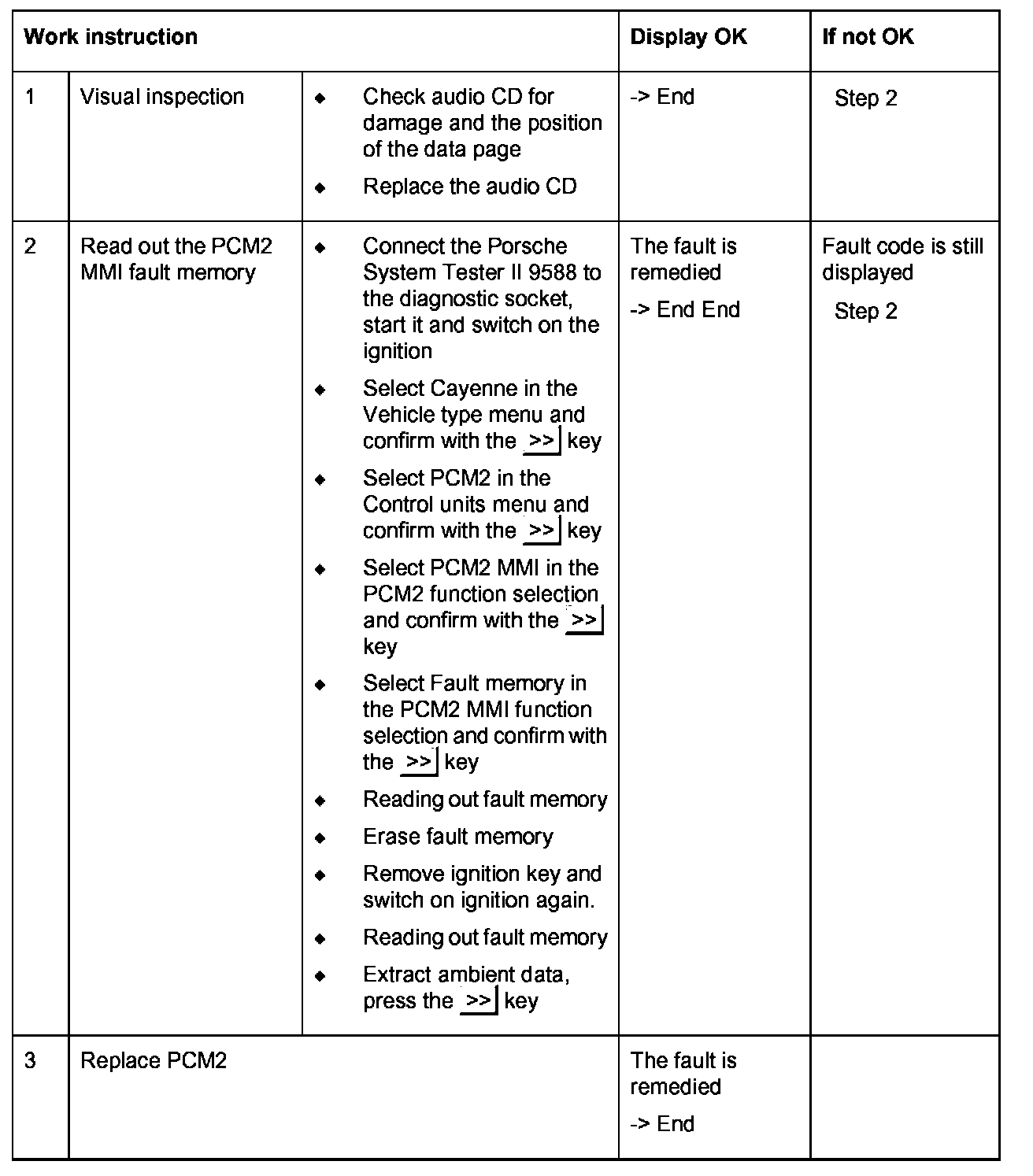

Work Instruction 1 - 3:
