CD Changer

8007 CD Changer

Mechanical fault while removing CD from magazine

Diagnostic conditions
- Ignition on.
- PCM2/CDR23 ON

NOTE:
- Fault code 8003 is recorded in the PCM2 MMI/CDR23 if the operating buttons are actuated for '≥ 1 Min.'.
- Deactivate the 'automatic traffic announcement' before performing the diagnosis on the PCM2/CDR23 If this is not done, the diagnosis will abort (applies only to software version number < 03)

Possible cause of fault
- CD changer faulty

NOTE:
- The MOST optical wave guide is connected to the following control modules:
- PCM2/CDR23
- (Optional) external BOSE amplifier
- CD changer optional
- Telephone/telematics (only in conjunction with PCM2)

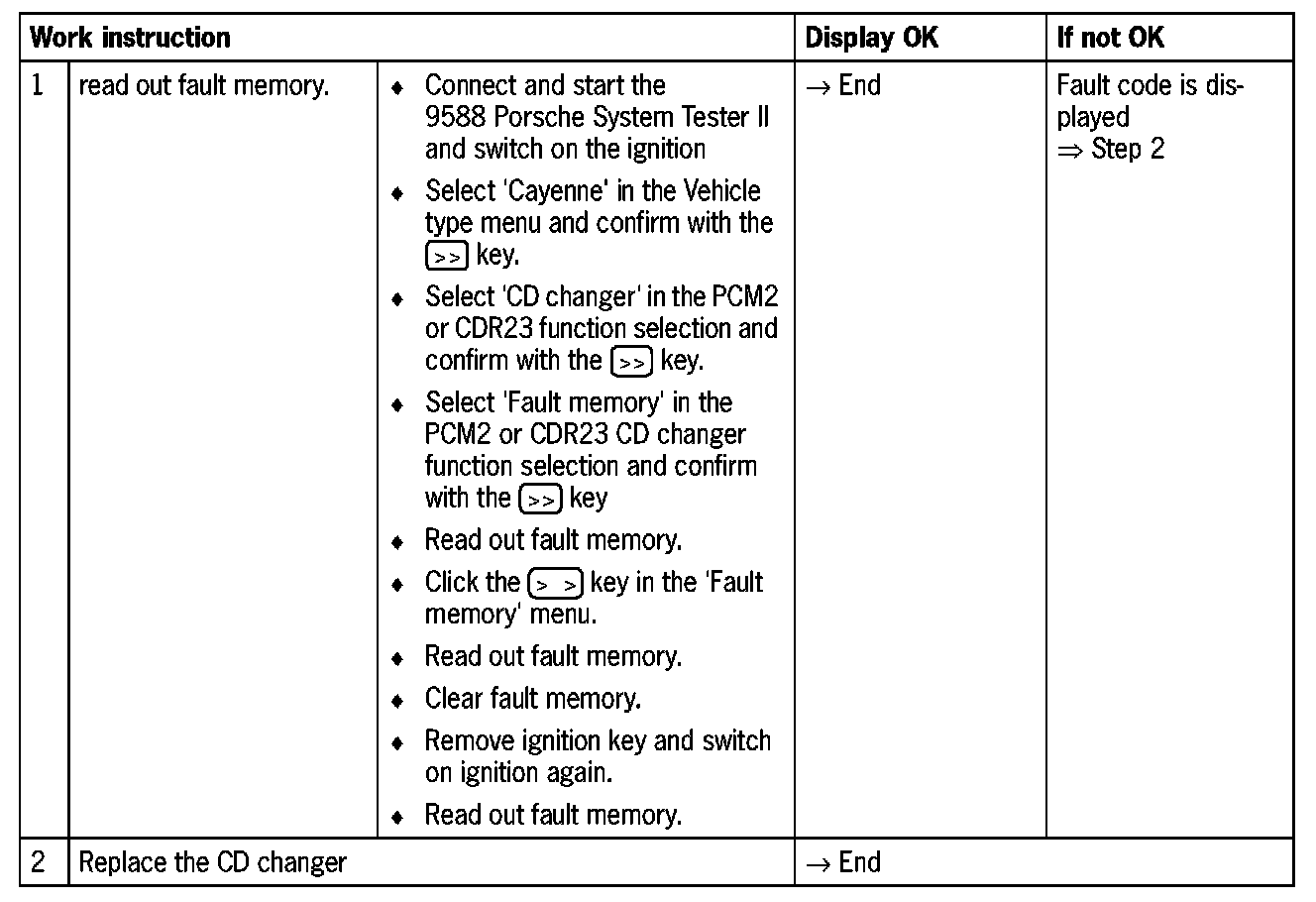

Diagnosis/troubleshooting
