PCM2/CDR23 - MMI

8007 PCM2 - MMI

Ring break diagnosis line open circuit

Diagnostic conditions
- Ignition ON.
- PCM2 on.

Possible cause of fault
- Ring break diagnosis line: short circuit to ground/ B+ or open circuit
- The recipient MOST control module is faulty
- PCM2 faulty

NOTE:

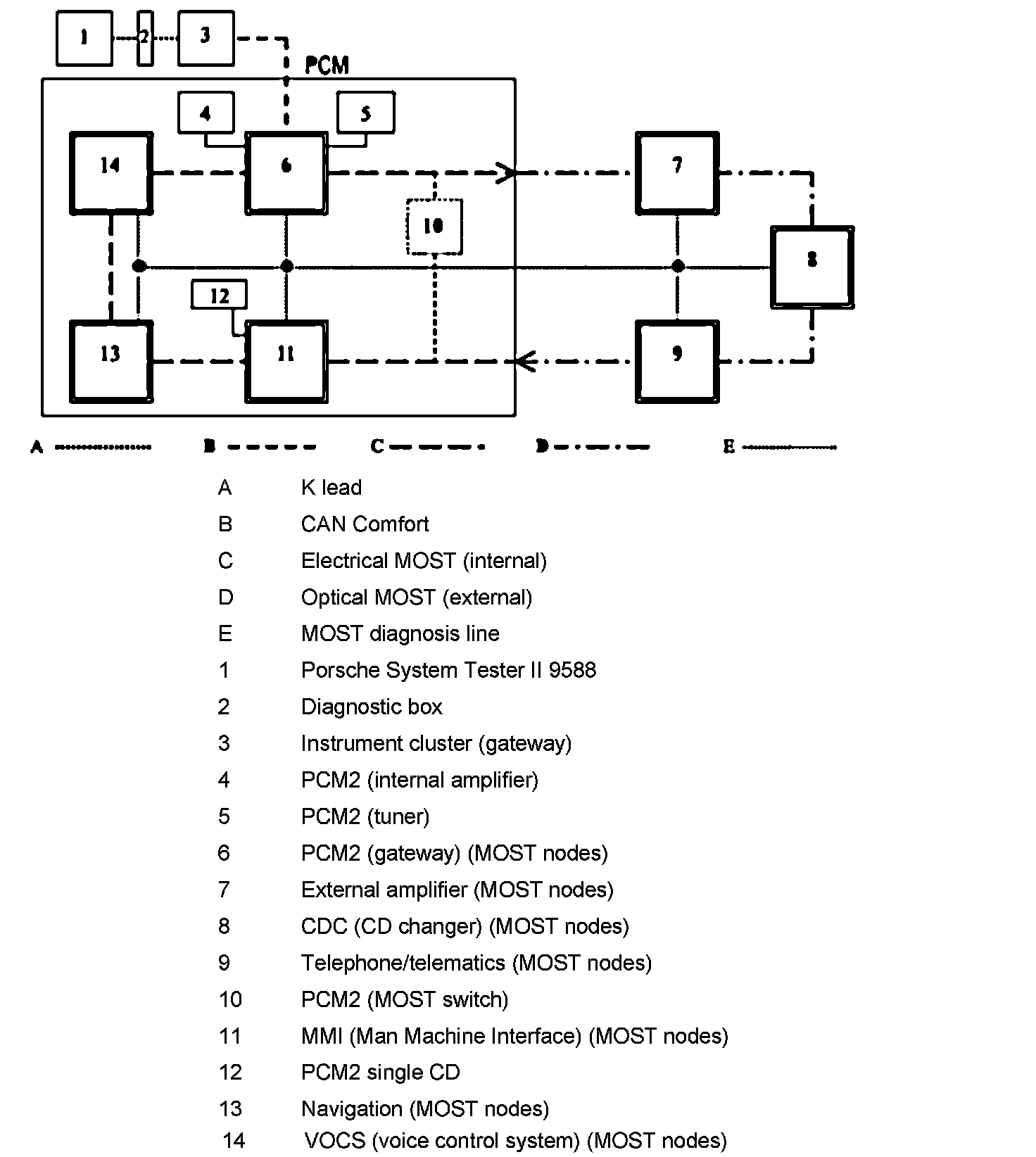

- The ring break diagnosis line is connected to the following MOST control modules:
- PCM2 gateway
- PCM2 MMI
- PCM2 navigation (optional)

- The ring break diagnosis line and the MOST optical waveguide are connected to the following control modules:
- External amplifier (Harman or BOSE) (optional)
- CD changer (optional)
- Telephone/telematics (optional)







Affected pin
PCM2 plug C, pin -4

Diagnosis/troubleshooting

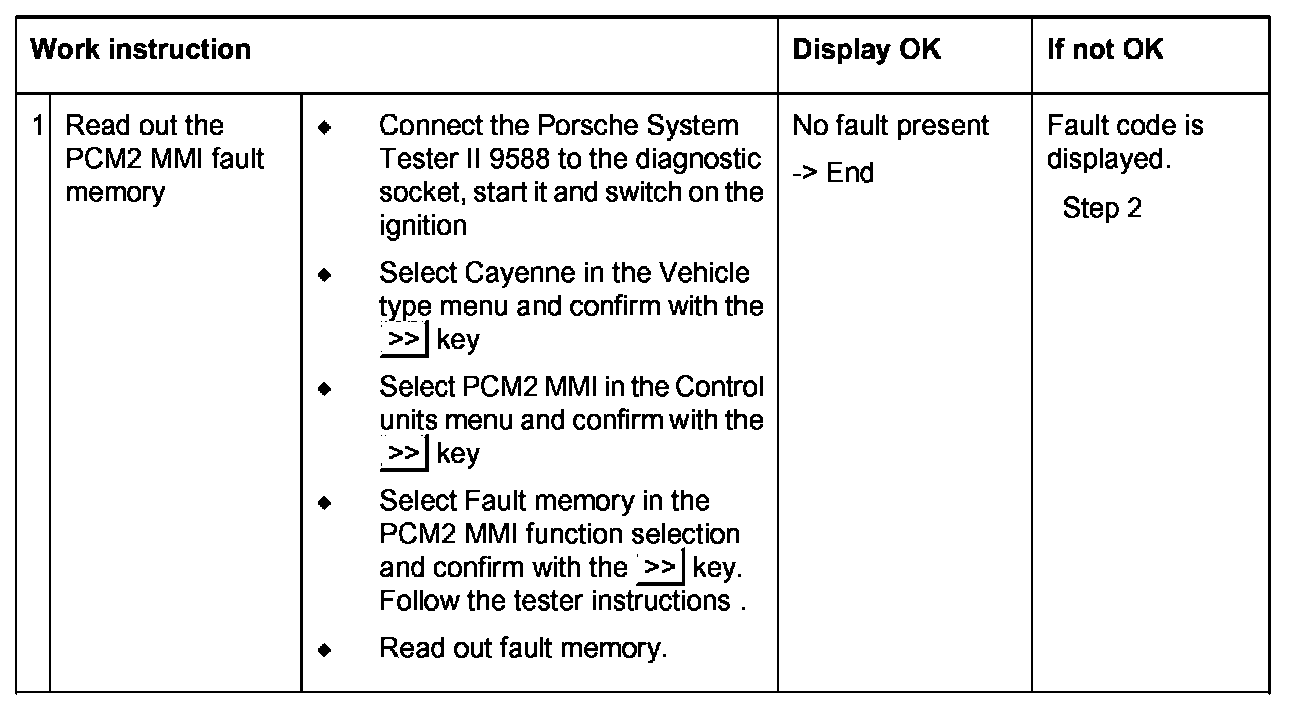

Work Instruction 1:

Work Instruction 2 - 4:
