PCM2 - CD Changer

8008 CD Changer

Mechanical fault while lifting audio CD into reader

Diagnostic conditions
- Ignition on.
- PCM2/CDR23 ON

NOTE:
- Fault code 8003 is recorded in the PCM2 MMI/CDR23 if the operating buttons are actuated for 1 Min.
- Deactivate the automatic traffic announcement before performing the diagnosis on the PCM2/CDR23. If this is not done, the diagnosis will abort (applies only to software version number less than 03).

Possible cause of fault
- CD changer faulty

NOTE:
- The MOST optical waveguide is connected to the following control modules:
- PCM2/CDR23
- (Optional) external BOSE amplifier.
- CD changer optional
- Telephone/telematics (only in conjunction with PCM2)

Affected terminals
- none

Diagnosis/troubleshooting

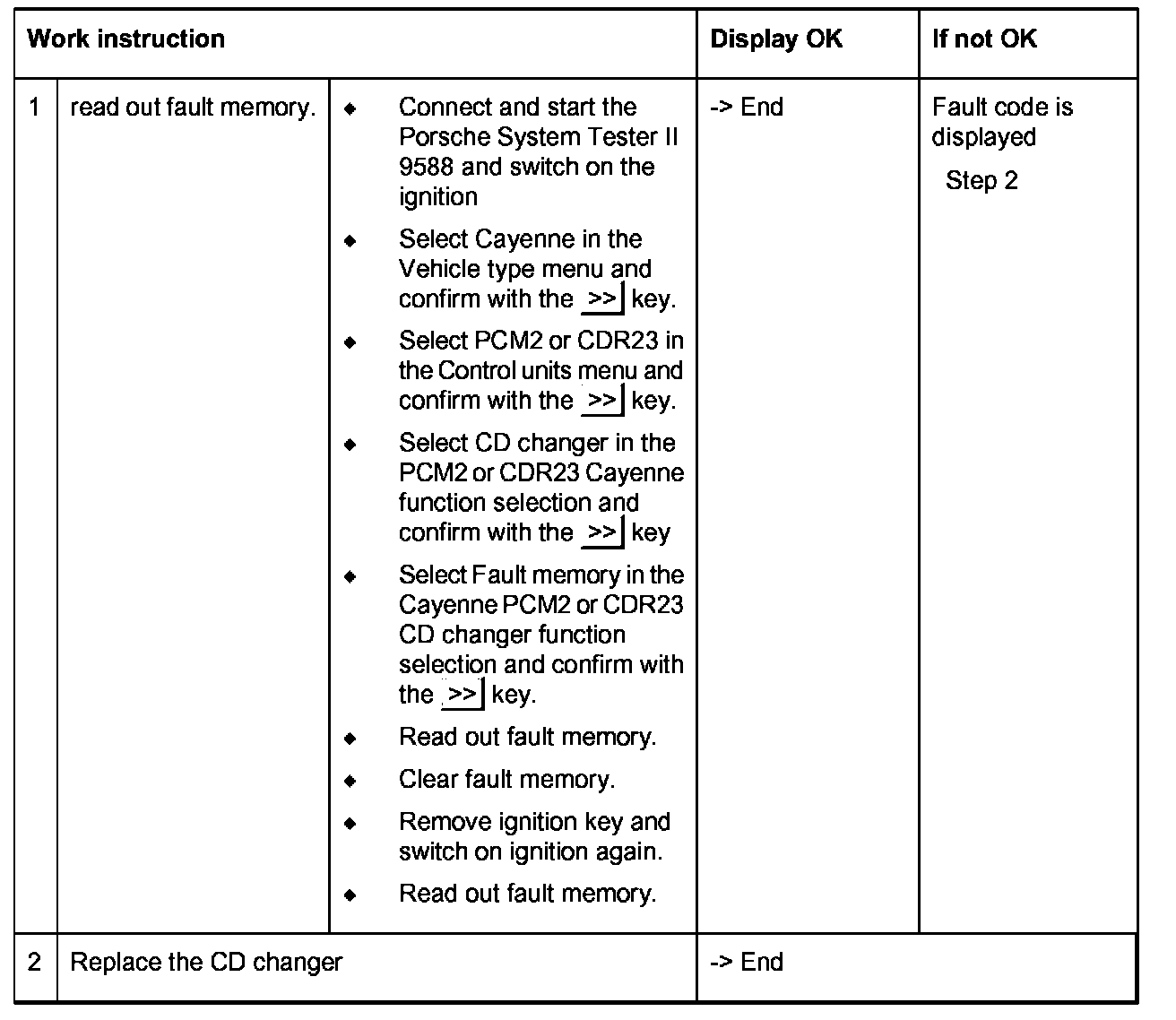

Work Instruction 1 - 2:
