PCM2/CDR23 (MMI)

800C PCM2 - MMI

Fault during the software update via single CD drive.

Diagnostic conditions
- Ignition ON.
- PCM2 on.

Possible cause of fault
- Incorrect/incompatible software version
- Third-party software components

NOTE:
- The MOST optical wave guide is connected to the following control modules:
- Amplifier
- CD changer
- Telephone/telematics

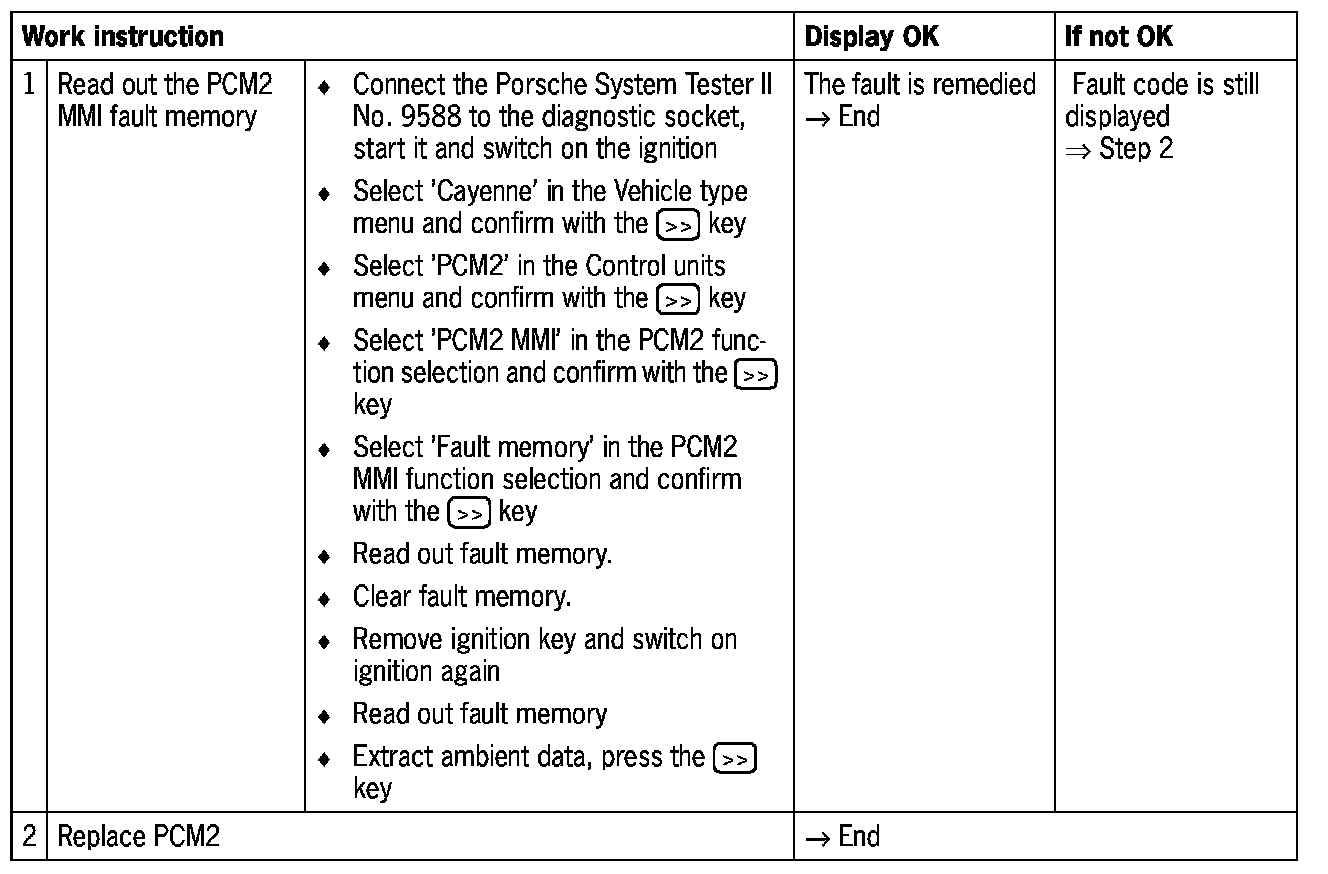

Diagnosis/troubleshooting
