PCM2/CDR23 - External BOSE Amplifier

8013 External BOSE Amplifier

Front center fault.

Diagnostic conditions
- Ignition on.
- PCM2/CDR23 ON

NOTE:
- Fault code 8003 is recorded in the PCM2 MMI if the operating buttons are actuated for '≥ 1 Min.'.
- Deactivate the 'automatic traffic announcement' before performing the diagnosis on the PCM2. If this is not done, the diagnosis will abort.
- This fault code is set by means of a self-test with the 9588 Porsche System Tester II.

Possible cause of fault
Wiring harness/rear left and right loudspeakers faulty
External BOSE amplifier output stage faulty

Affected pin
Amplifier control module, plug A, pins 23 and 28

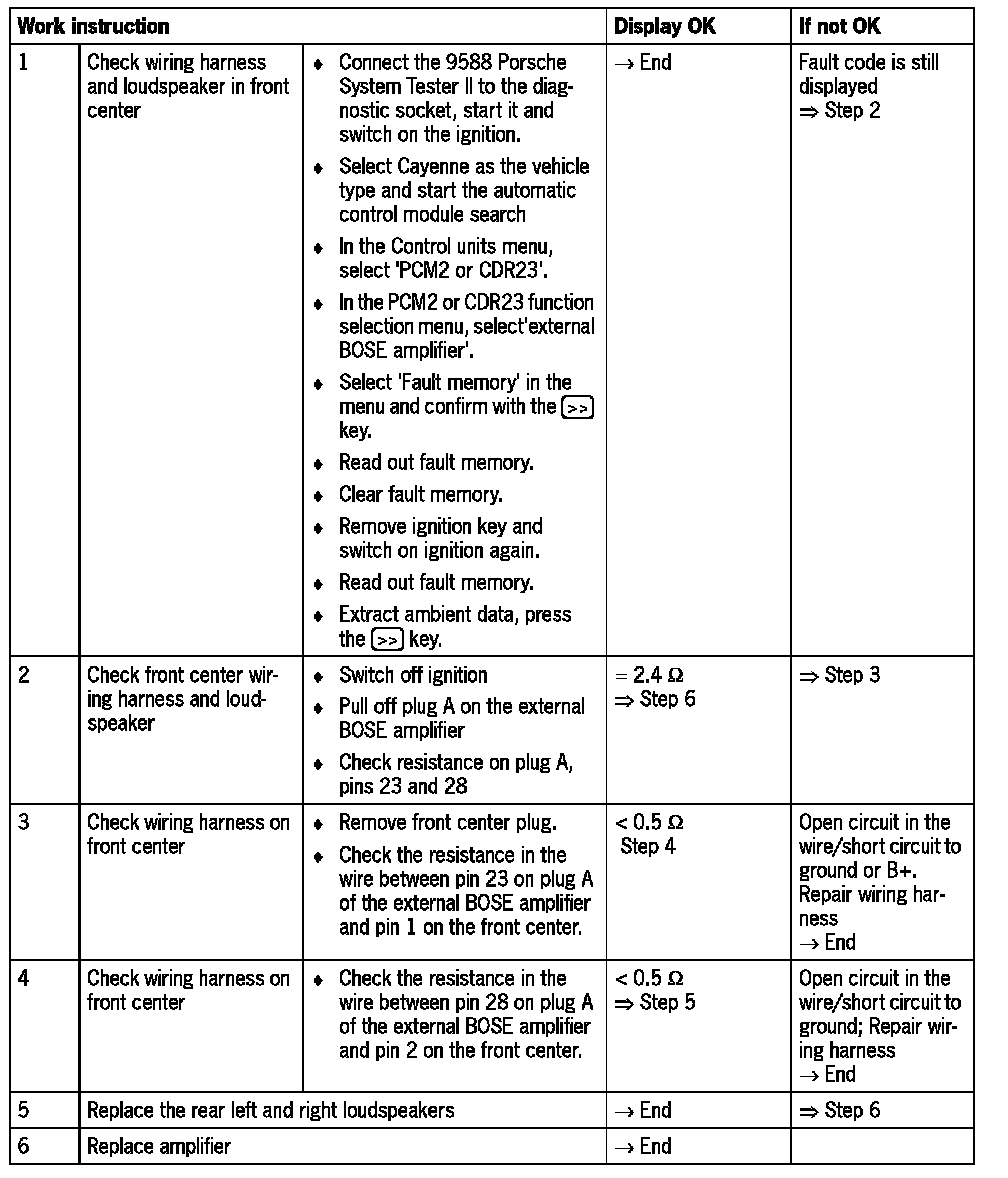

Diagnosis/troubleshooting
