PCM2/CDR23

8014 CDR23

Single CD drive overheating

Diagnostic conditions
- Ignition on
- CDR23 ON

NOTE: Fault code 8013 is recorded if the operating buttons are actuated for longer than 1 minute.

Possible cause of fault
- Temperature sensor in CDR23 (FOT) faulty
- CDR23 faulty

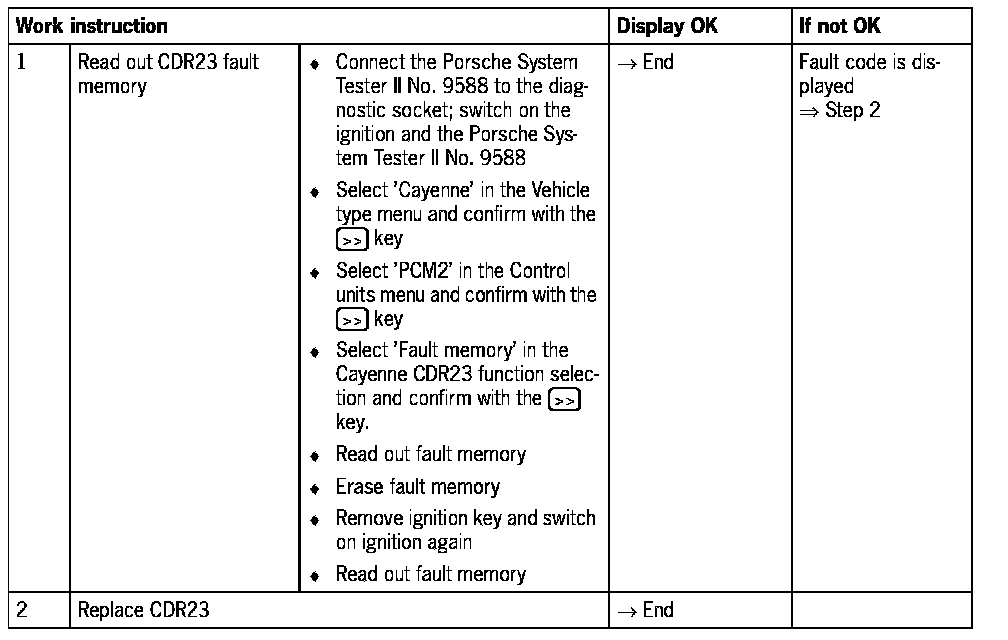

Diagnosis/troubleshooting
