PCM2/CDR23

8015 CDR23

Audio CD cannot be read

Diagnostic conditions
- Ignition on
- CDR23 ON
- CD inserted

NOTE: Fault code 8013 is recorded if the operating buttons are actuated for longer than '≥ 1 minute'.

Possible cause of fault
- Audio CD missing or damaged
- Audio CD inserted the wrong way round

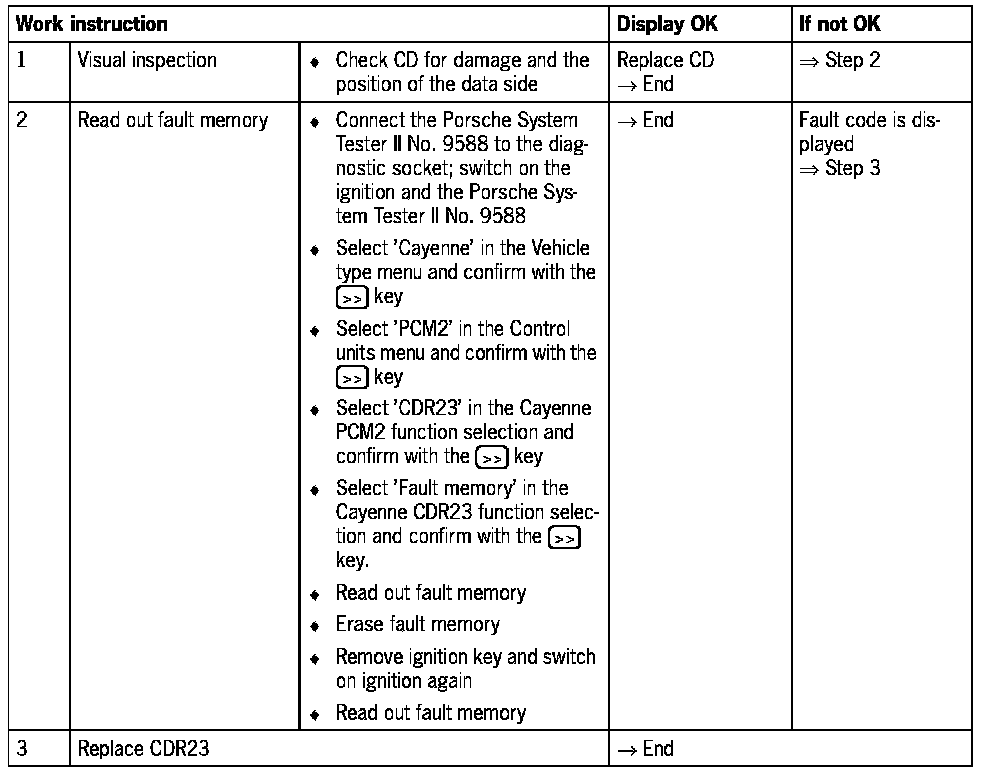

Diagnosis/troubleshooting
