Fault Code 8505

8505 - TV tuner

Antenna amplifier at center rear window - open circuit

NOTE: The colour coding and number of the coaxial cable can only be distinguished on the TV tuner plug

Diagnostic conditions
- PCM2 switched on

Possible cause of fault
- Coaxial cable no.2 (yellow) not connected to TV tuner or antenna amplifier at center rear window
- Coaxial cable no.2 (yellow) faulty
- Antenna amplifier at center rear window faulty
- TV tuner faulty

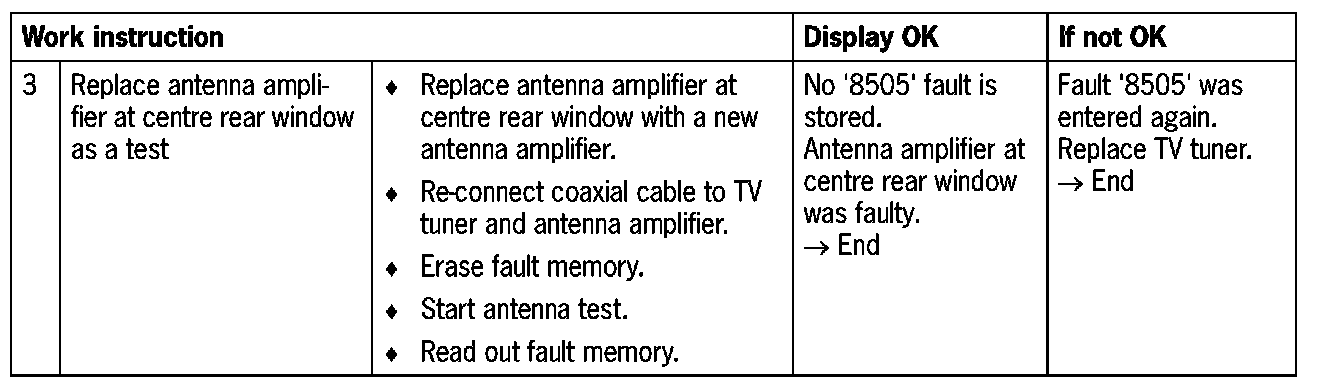

Diagnosis/troubleshooting

Part 1:

Part 2:
