Fault Code 9604

9604 Telephone/Telematics

GSM antenna fault

Diagnostic conditions
- Ignition on.
- PCM2 on.

Possible cause of fault
- Antenna lead faulty
- GSM antenna faulty

NOTE:
- The MOST optical waveguide is connected to the following control modules:
- PCM2
- Optional external amplifier (BOSE)
- CD changer optional
- Telephone/telematics (only in conjunction with PCM2)

Affected pin
Telephone control module, plug B, pin 1

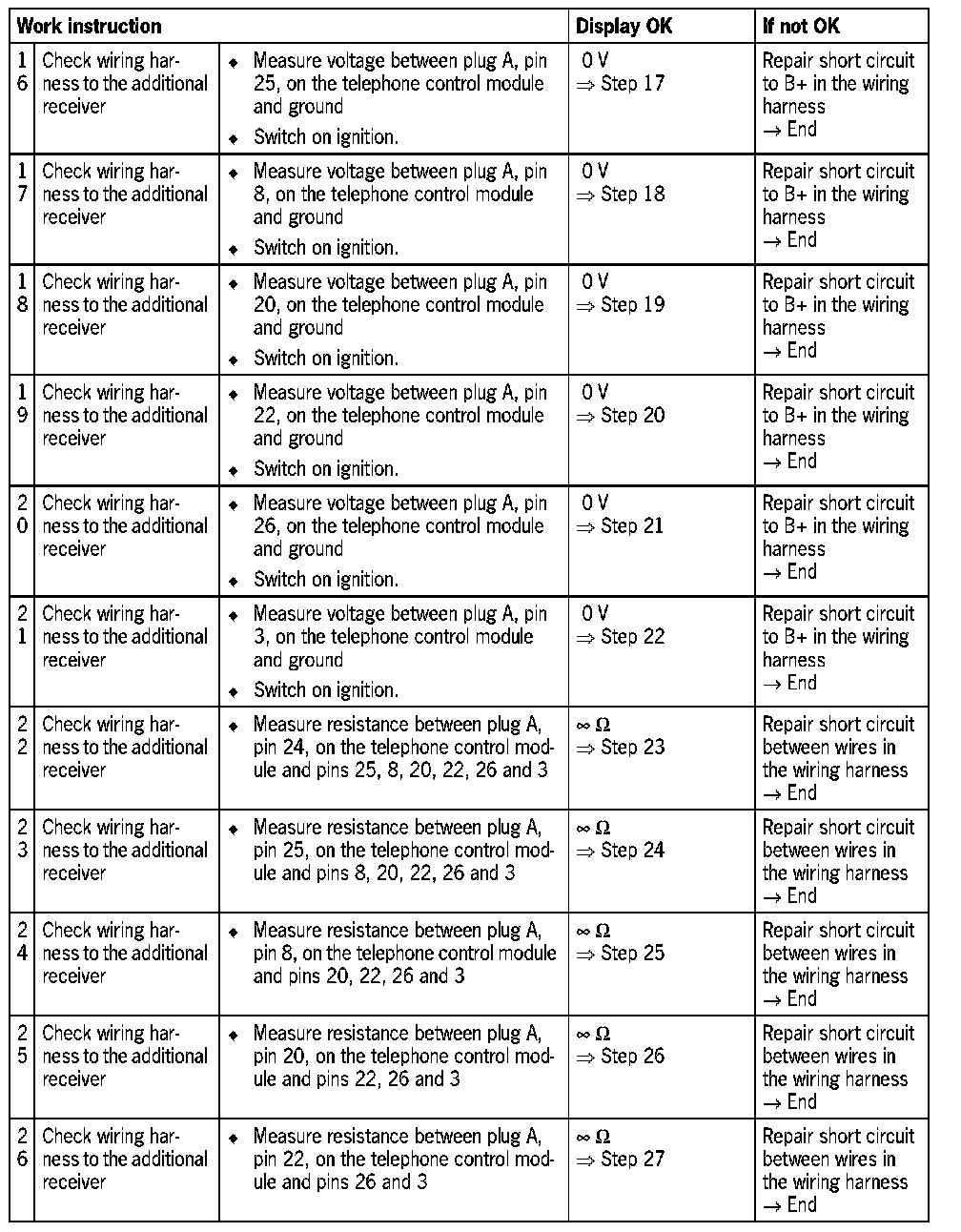

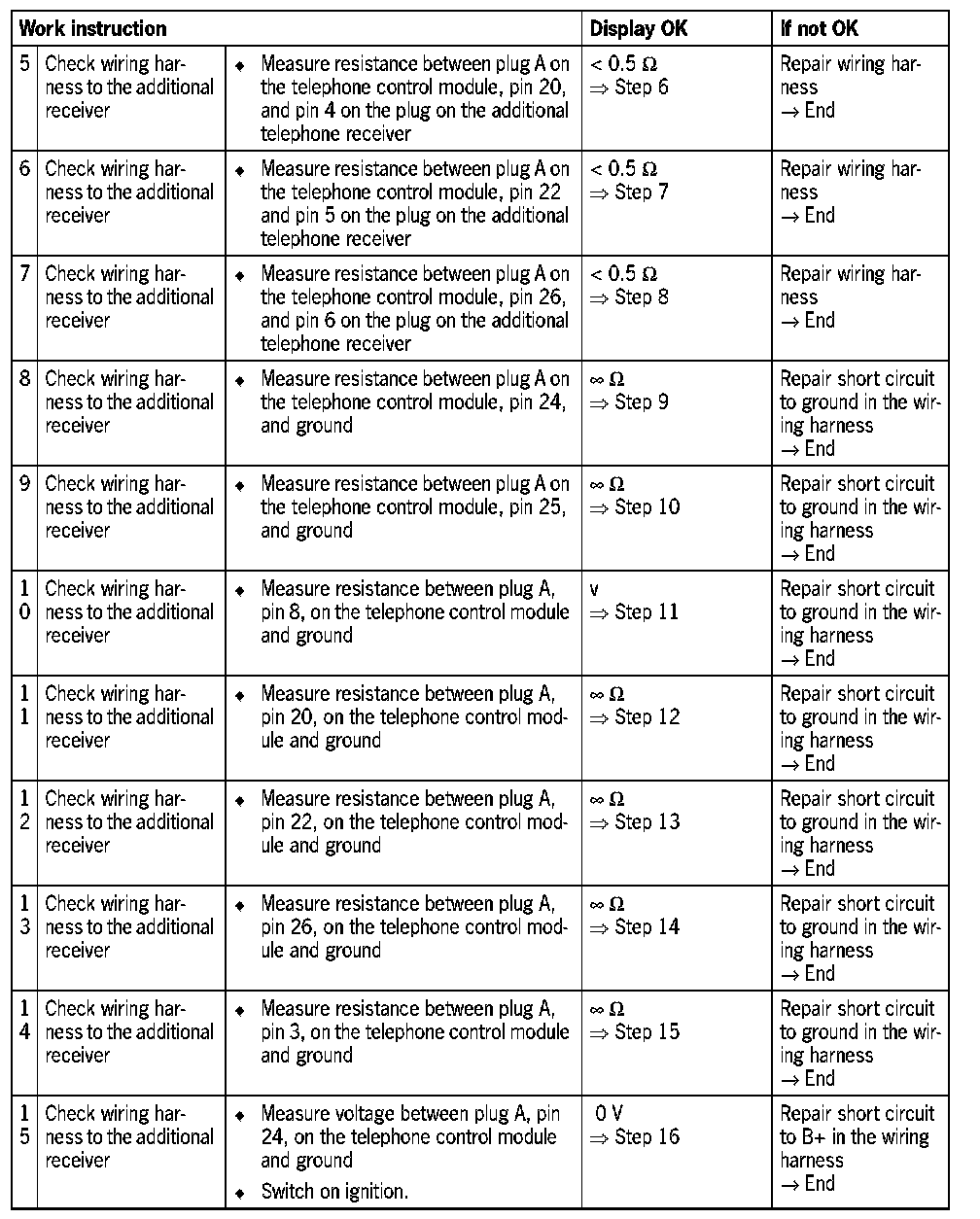

Diagnosis/troubleshooting

Fault Code 9604

Part 1:

Part 2:

Part 3:

Part 4:
