Offroad Stabilizers
Fault code 0576Terminal 15 (diagnosis of feedback signal lead)
Diagnostic conditions
- Internal offroad stabilizer control module function test
- Ignition off
Possible cause of fault
- Short circuit to B+
- Short circuit to ground
- Open circuit in wiring
- Fuse 'F49' (5A) in fuse carrier at left of dashboard faulty
- Relay for terminal 15 under driver's seat faulty
- ORS control module faulty
Affected pins
Offroad stabilizer control module connector B:
- Pin 7 'terminal 15'

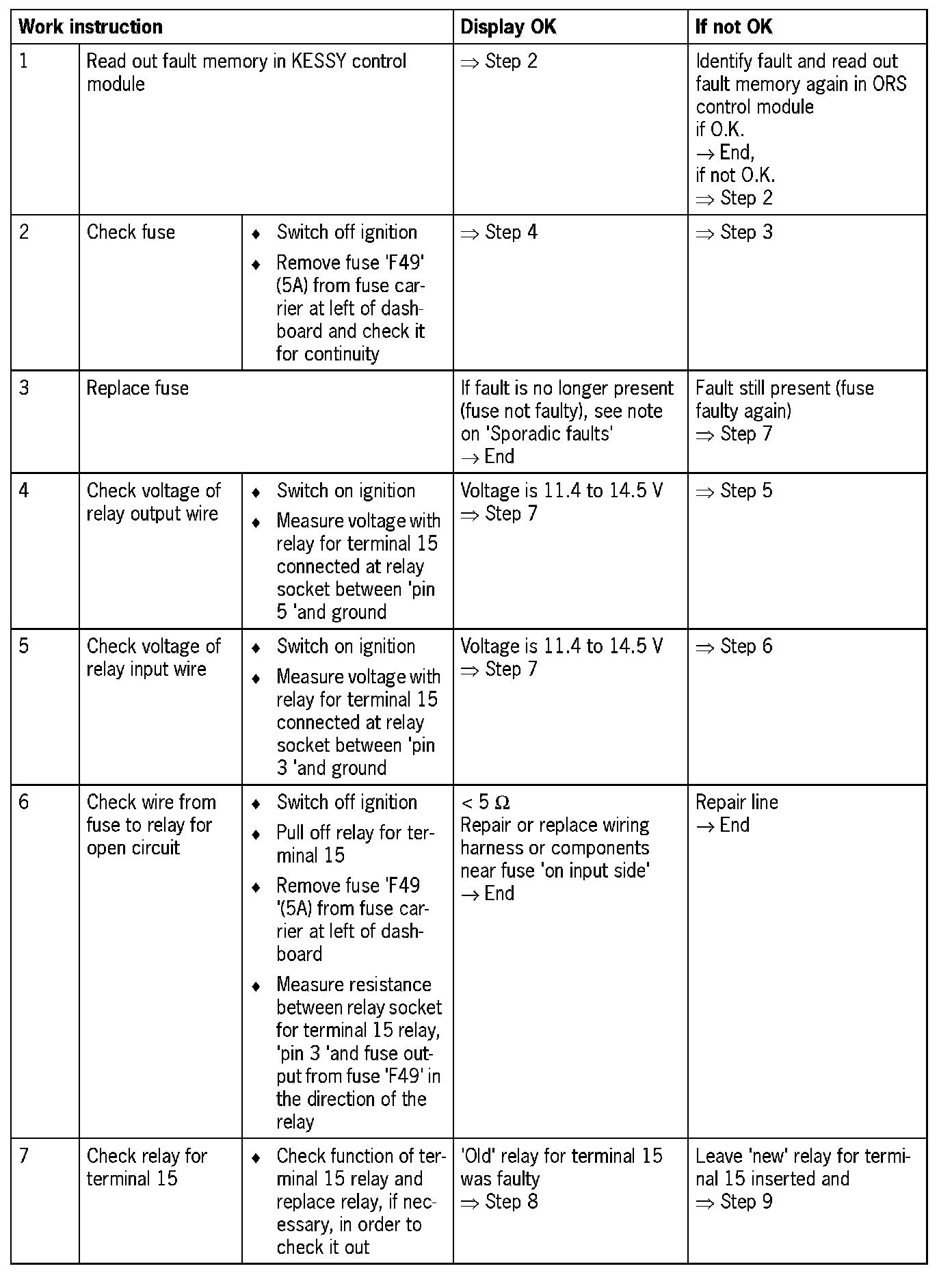

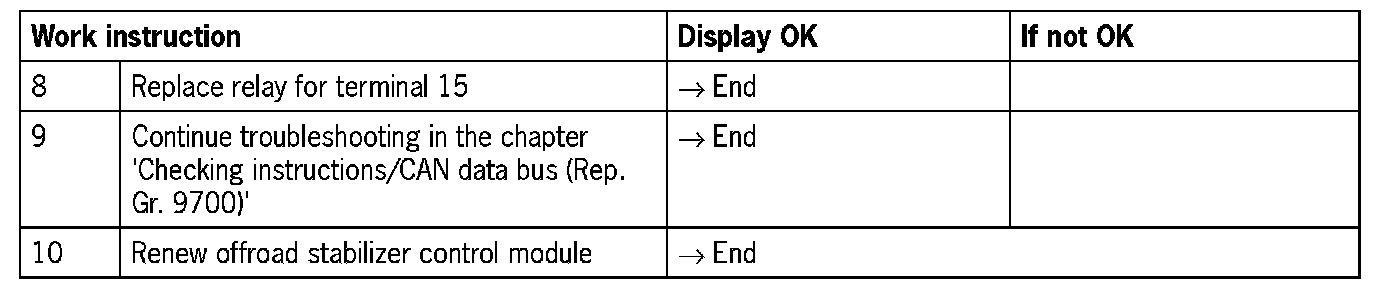

Diagnosis/troubleshooting
NOTE:
Visual inspection: In the next troubleshooting section, please check first that the affected pins on the ORS control module plug connection are neither damaged nor corroded. The wiring and plugs of the affected components must also be checked for external damage and correct contacts. Repair damaged or corroded pins if possible, otherwise replace affected pins. Repair or replace damaged wires.
NOTE:
Sporadic faults: In the event of faults that occur sporadically, the wiring positions that are linked to moving parts on and in the vehicle must be checked for each system. Various statuses that can cause faults must be simulated with the help of the wiring diagram.
