Navigation: 8016

8016 - Navigation

DVD navigation

Diagnostic conditions
- Ignition on
- PCM2 switched on

Possible cause of fault
- Disk unreadable
- Power supply - limit value exceeded
- Power supply - limit value not reached
- DVD navigation system faulty

Affected pin
Terminal 30 power supply, DVD navigation plug, pin 2
Ground for DVD navigation plug, pin 1

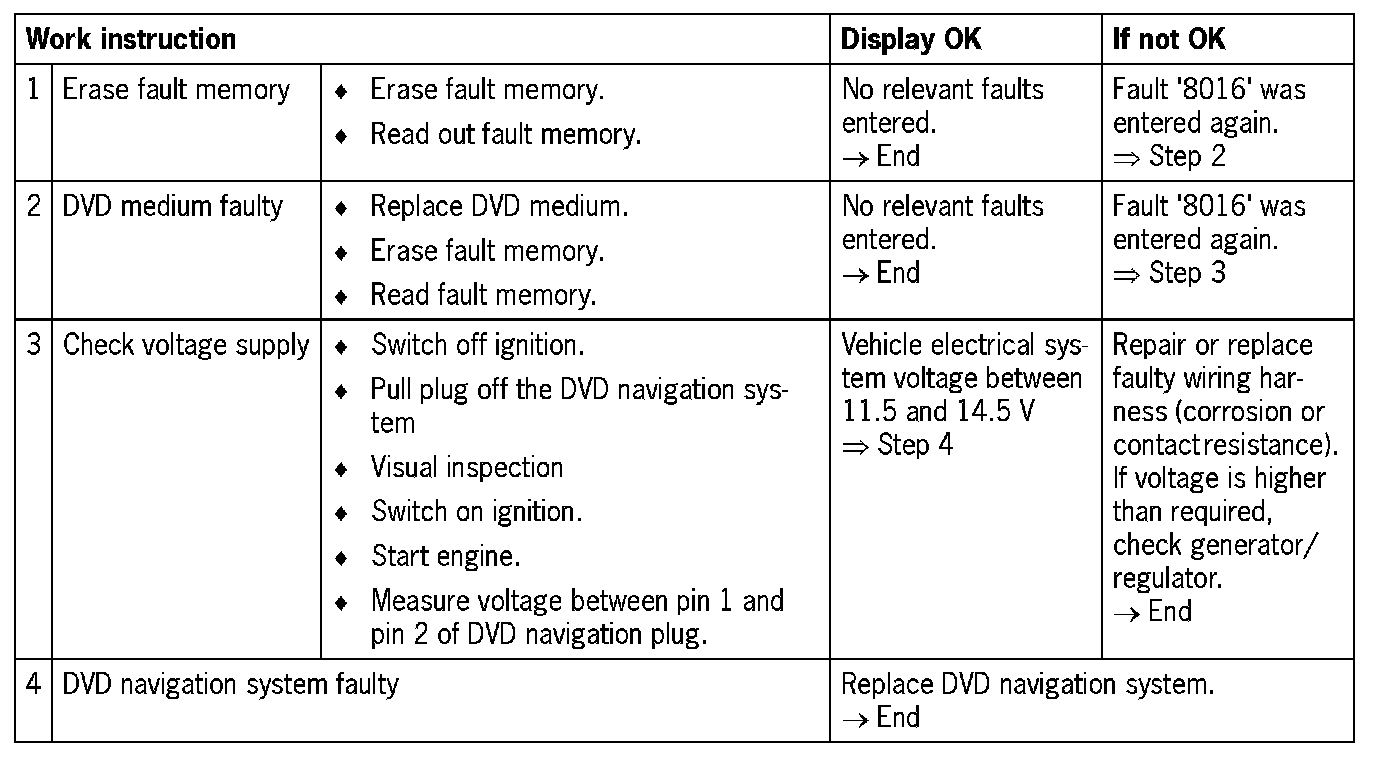

Diagnosis/troubleshooting
