PCM2 - MMI: 8003

8003 PCM2 - MMI

Operating buttons are jammed

Diagnostic conditions
- Ignition ON.
- PCM2 on.
- Manual actuation

NOTE: Fault code 8003 is recorded if the operating buttons are actuated for '≥ one minute' or more.

Possible cause of fault
- Internal short circuit

Affected pins
-

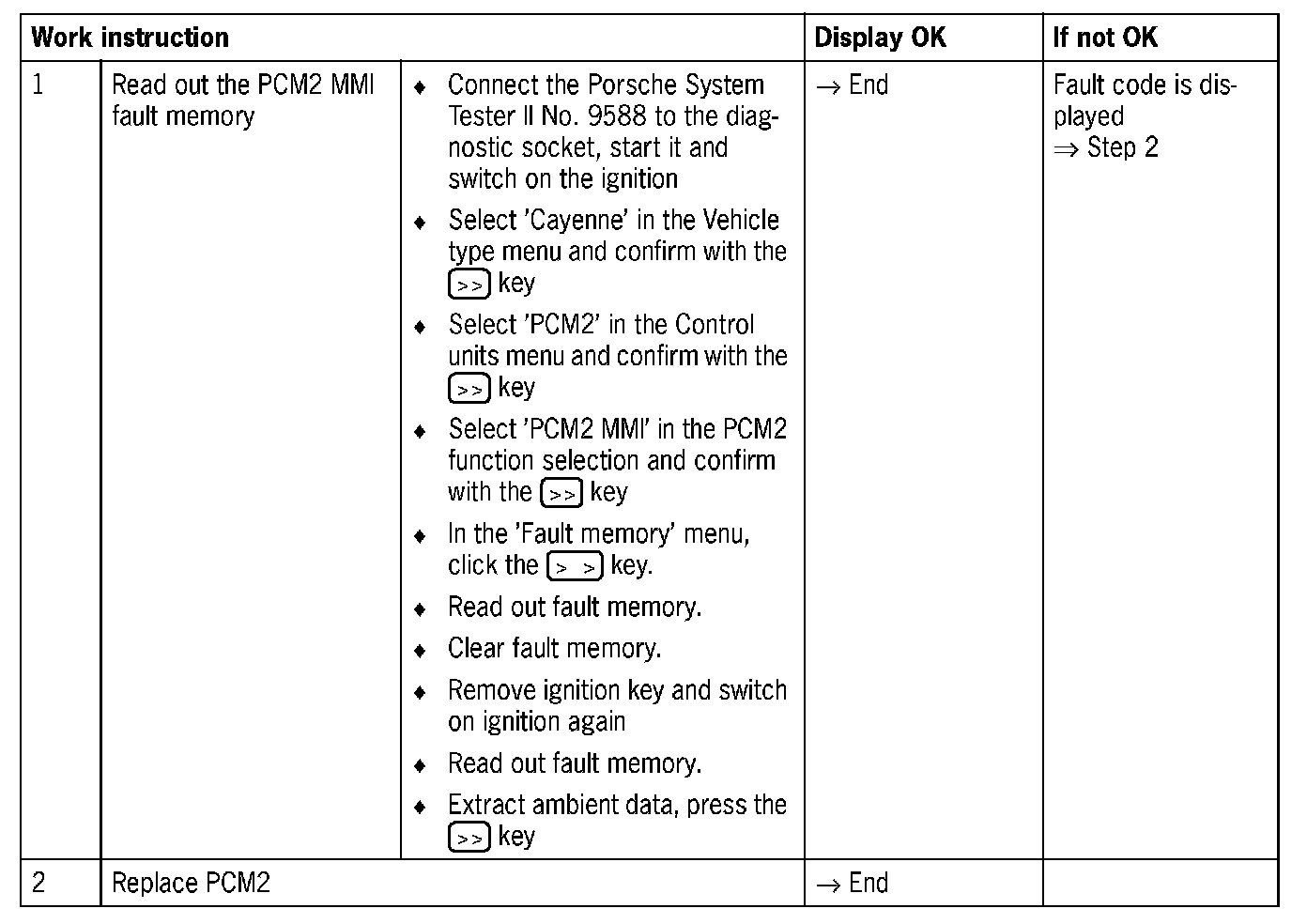

Diagnosis/troubleshooting
