PCM2 - MMI: 8007
8007 PCM2 - MMIRing break diagnosis line open circuit
Diagnostic conditions
- Ignition ON.
- PCM2 on.
Possible cause of fault
- Ring break diagnosis line: short circuit to ground/ B+ or open circuit
- The recipient MOST control module is faulty
- PCM2 faulty
NOTE:
- The ring break diagnosis line is connected to the following MOST control modules:
- PCM2 gateway
- PCM2 MMI
- PCM2 navigation (optional)
- The ring break diagnosis line and the MOST optical waveguide are connected to the following control modules:
- External amplifier (Harman or BOSE) (optional)
- CD changer (optional)
- Telephone/telematics (optional)

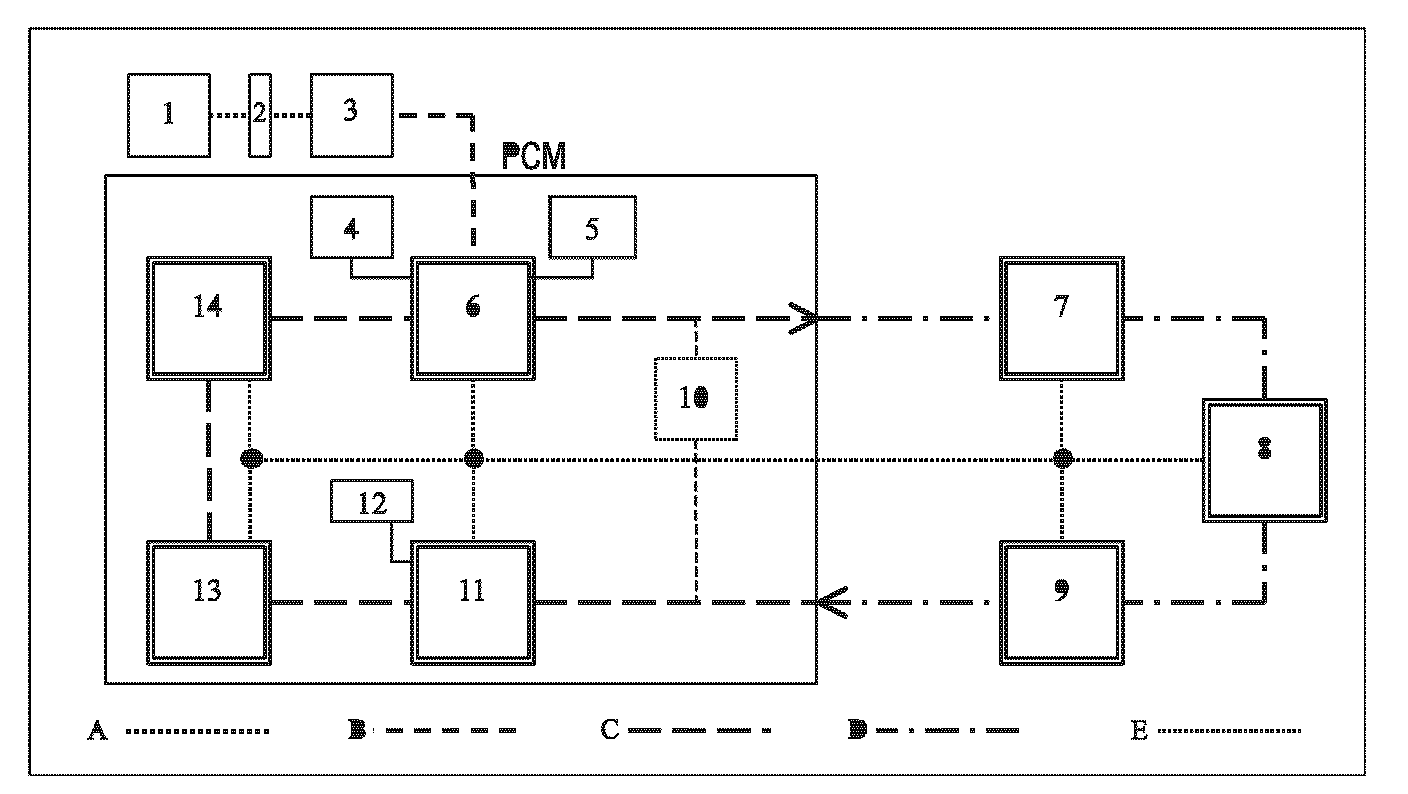

A - K lead
B - CAN Comfort
C - Electrical MOST (internal)
D - Optical MOST (external)
E - MOST diagnosis line
1 - Porsche System Tester II No.9588
2 - Diagnostic box
3 - Instrument cluster (gateway)
4 - PCM2 (internal amplifier)
5 - PCM2 (tuner)
6 - PCM2 (gateway) (MOST nodes)
7 - External amplifier (MOST nodes)
8 - CDC (CD changer) (MOST nodes)
9 - Telephone/telematics (MOST nodes)
10 - PCM2 (MOST switch)
11 - MMI (Man Machine Interface) (MOST nodes)
12 - PCM2 single CD
13 - Navigation (MOST nodes)
14 - VOCS (voice control system) (MOST nodes)
Affected pin
PCM2 plug C, pin -4

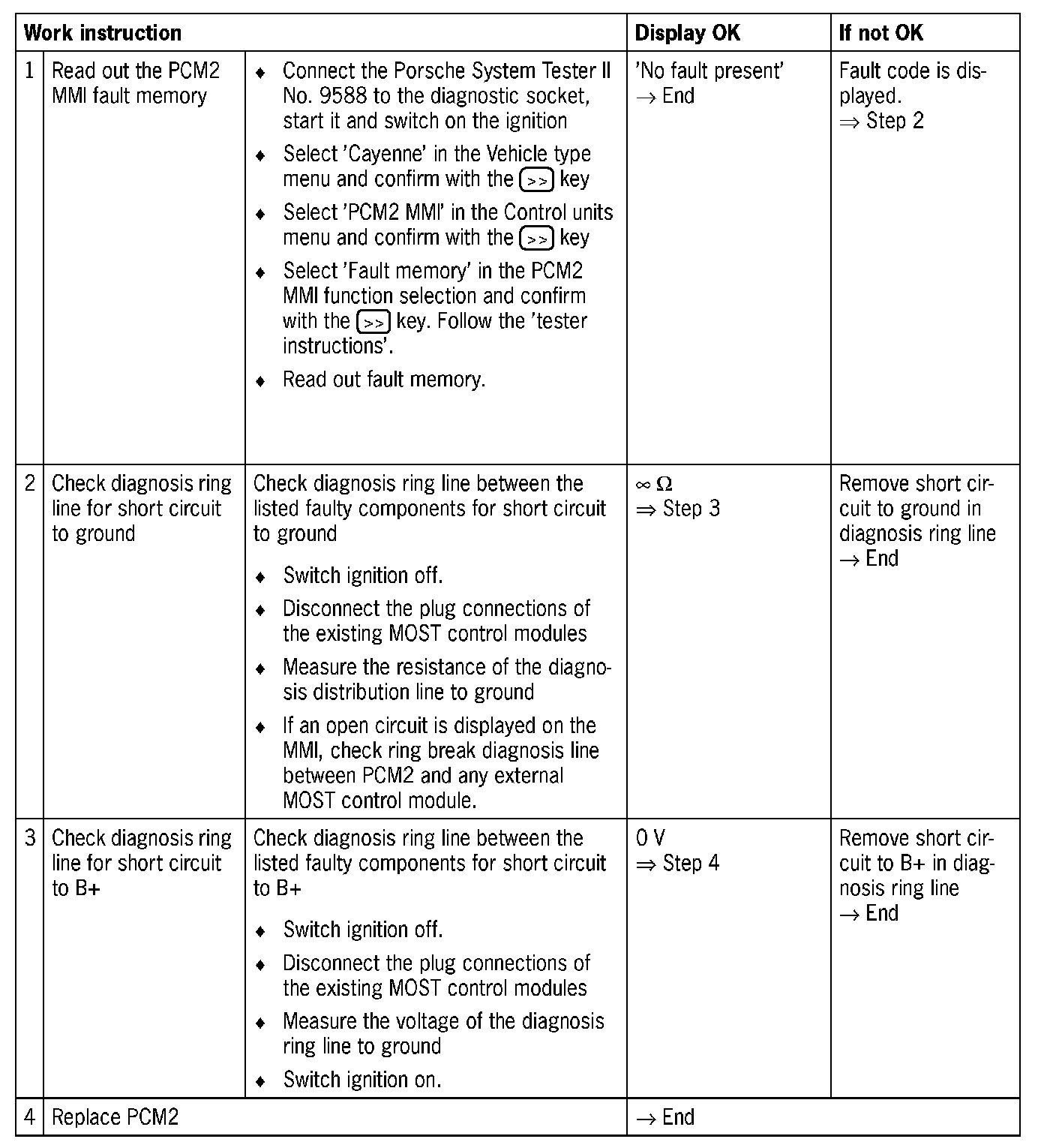

Diagnosis/troubleshooting
