PCM2 Gateway: 8005

8005 - PCM2 gateway

Instrument cluster - no communication

Diagnostic conditions
- Ignition on
- PCM2 on

Possible cause of fault
- Open circuit in CAN Infotainment (high)
- Open circuit in CAN Infotainment (low)

NOTE:
- CAN Infotainment is connected to the following control modules:
- PCM2
- Instrument cluster
- Wiper control module
- Magnetic field sensor control module

Affected pins

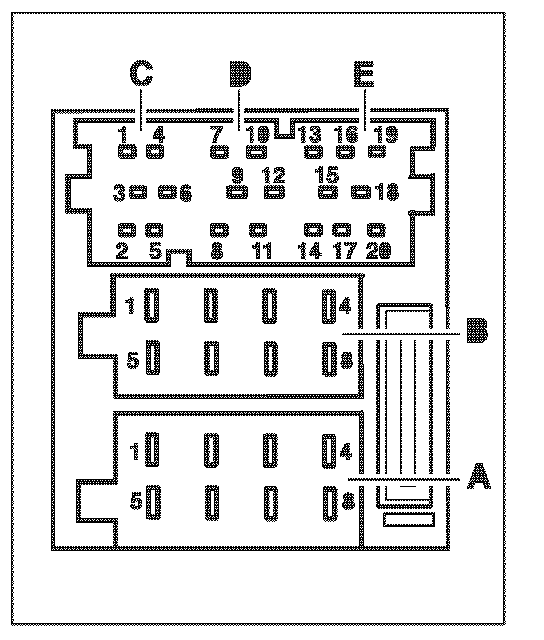

PCM2 control module, plug C, pins 1 and 2

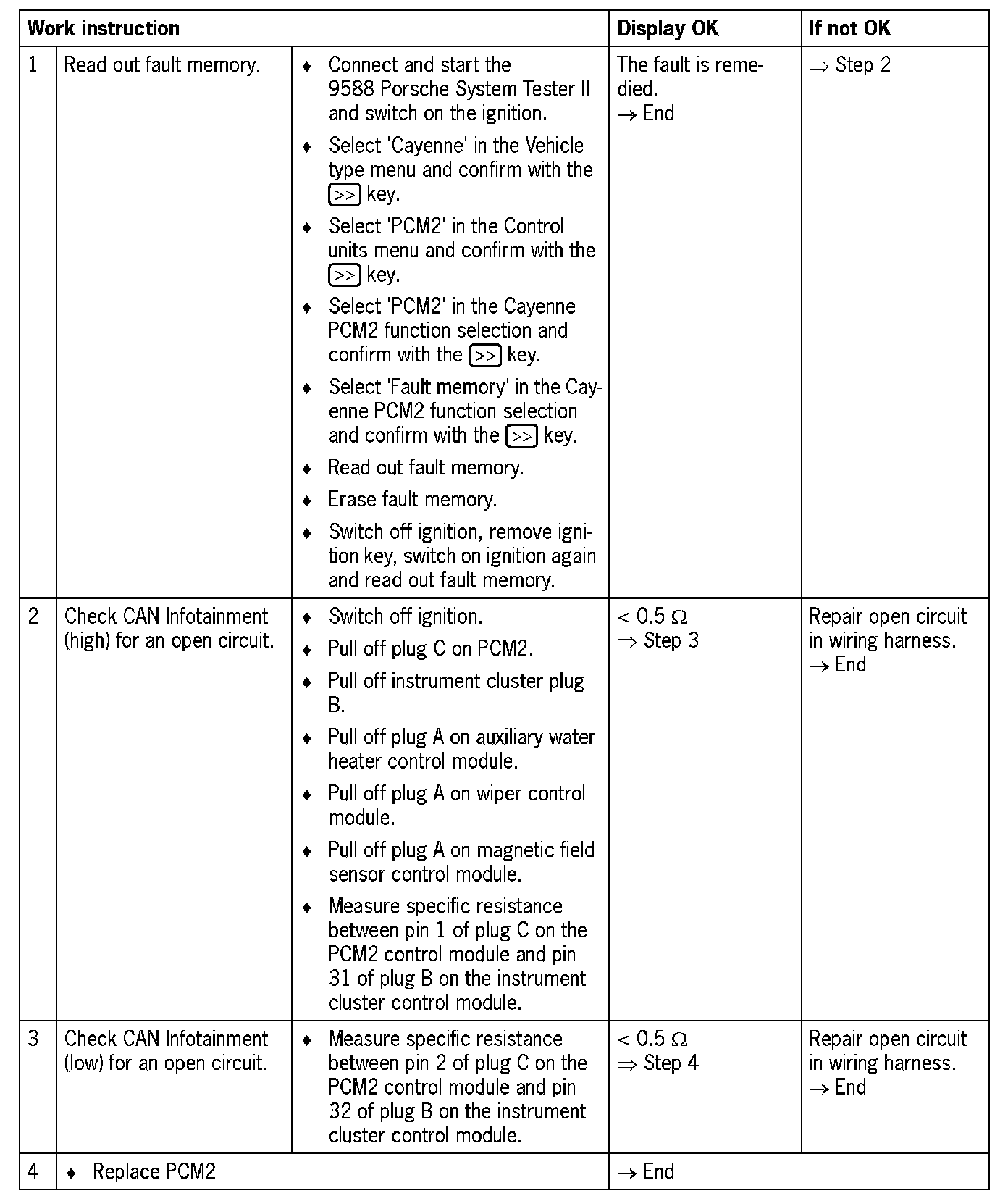

Diagnosis/troubleshooting
